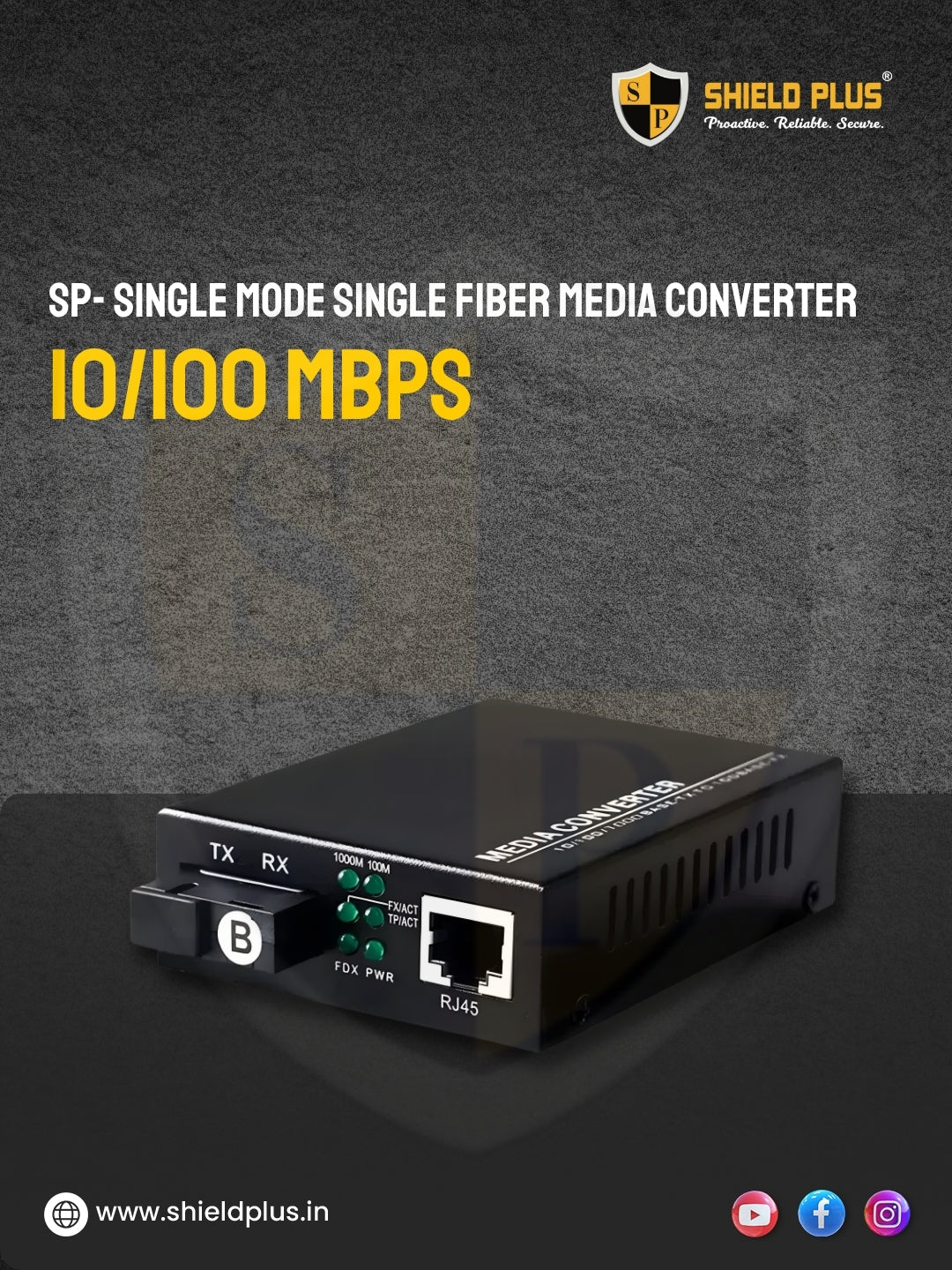

SP- SINGLE MODE SINGLE FIBER MEDIA CONVERTER- 10/100 MBPS

SP- SINGLE MODE SINGLE FIBER MEDIA CONVERTER- 10/100 MBPS

Rs. 1,180.00
Rs. 1,180.00
Sale Sold out
Taxes included.
No. Of Pcs.

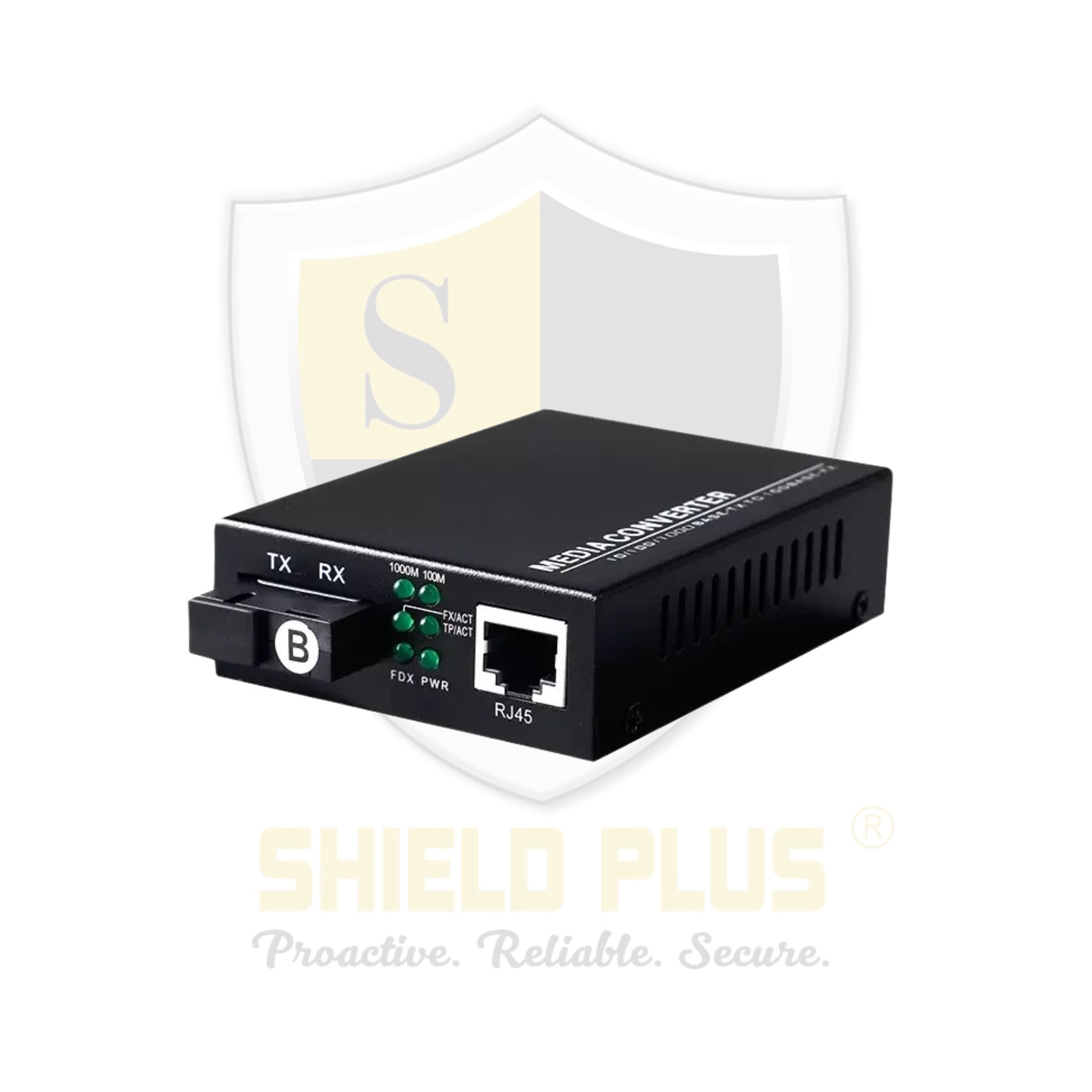

Single Mode Single Fiber Media Converter – 10/100 Mbps

This media converter converts 10/100 Mbps Ethernet signals to single-mode fiber. It is ideal for IP CCTV, enterprise networking, industrial automation, and telecom applications.

Key Features

  • Converts 10/100 Mbps Ethernet signals to single-mode fiber
  • Single fiber, single-mode transmission reduces fiber cost
  • Supports distances up to 20 km over single-mode fiber
  • Auto-negotiation for speed and duplex modes
  • Plug-and-play installation with LED status indicators
  • Compact metal housing for stability and long service life

Specifications

Feature Specification
Model SP - Single Mode Single Fiber Media Converter – 10/100 Mbps
Standards IEEE 802.3, IEEE 802.3u (10/100Base-TX, 100Base-FX)
Data Rate 10/100 Mbps auto-negotiation
Transmission Medium Copper: Cat5/5e/6 UTP cable (up to 100m)
Fiber: Single-mode, single fiber
Fiber Port Connector SC / FC / ST (model dependent)
Transmission Distance Up to 20 km (standard model), extendable for higher models
Wavelength Tx: 1310nm, Rx: 1550nm (and vice versa for pair device)
Duplex Mode Full / Half duplex auto-negotiation
Auto MDI/MDIX Supported
LED Indicators Power, FX Link/Act, TX Link/Act, Speed
Power Supply DC 5V external power adapter
Housing Metal enclosure for durability and EMI protection
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 70°C
Humidity 10% ~ 90% non-condensing
Dimensions Compact desktop design
