SP CAT-6 Outdoor Ethernet Cable – 270 Yards (Double PVC, 100% Pure Copper)
The SP (Shield Plus) Outdoor CAT-6 Cable – 270 Yards is a high-performance, long-distance Ethernet cable designed for professional-grade networking in challenging outdoor conditions. Constructed using 100% pure copper conductors, this cable ensures superior signal quality, reduced attenuation, and stable data transmission over extended distances.
This cable features a double-layer PVC jacket with an inner soft PVC and an outer rigid PVC layer for added durability. It is specifically engineered to withstand UV rays, water exposure, mechanical wear, and other environmental stresses, making it ideal for mission-critical applications such as IP surveillance systems, broadband networking, and industrial LAN setups.
Key Features
- 100% pure copper conductors for enhanced conductivity and reduced signal loss
- CAT-6 standard performance with up to 250 MHz bandwidth
- Supports 10/100/1000 Mbps (Gigabit Ethernet) data transmission
- Double-layer PVC jacket for superior outdoor protection

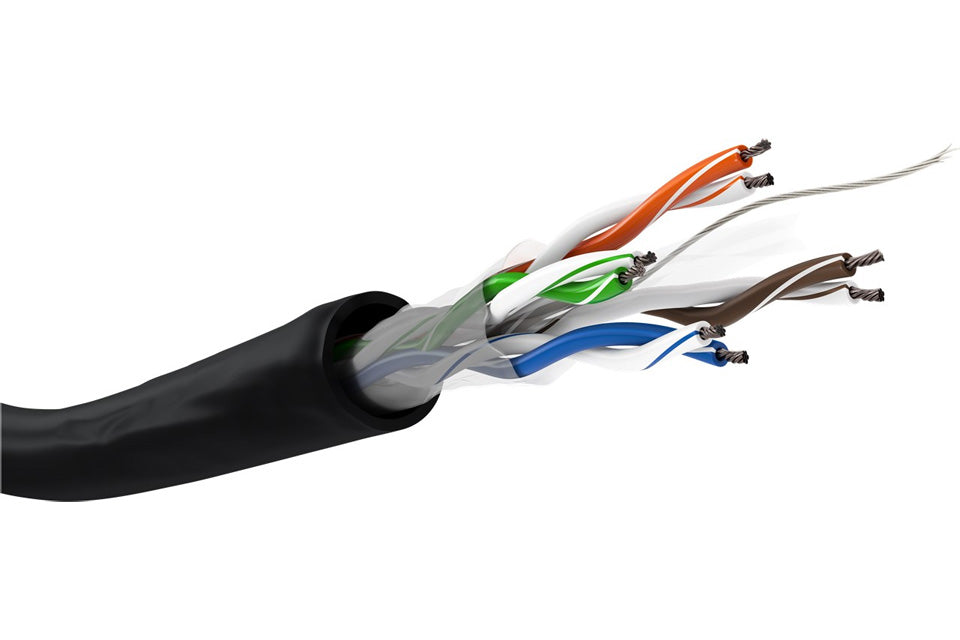

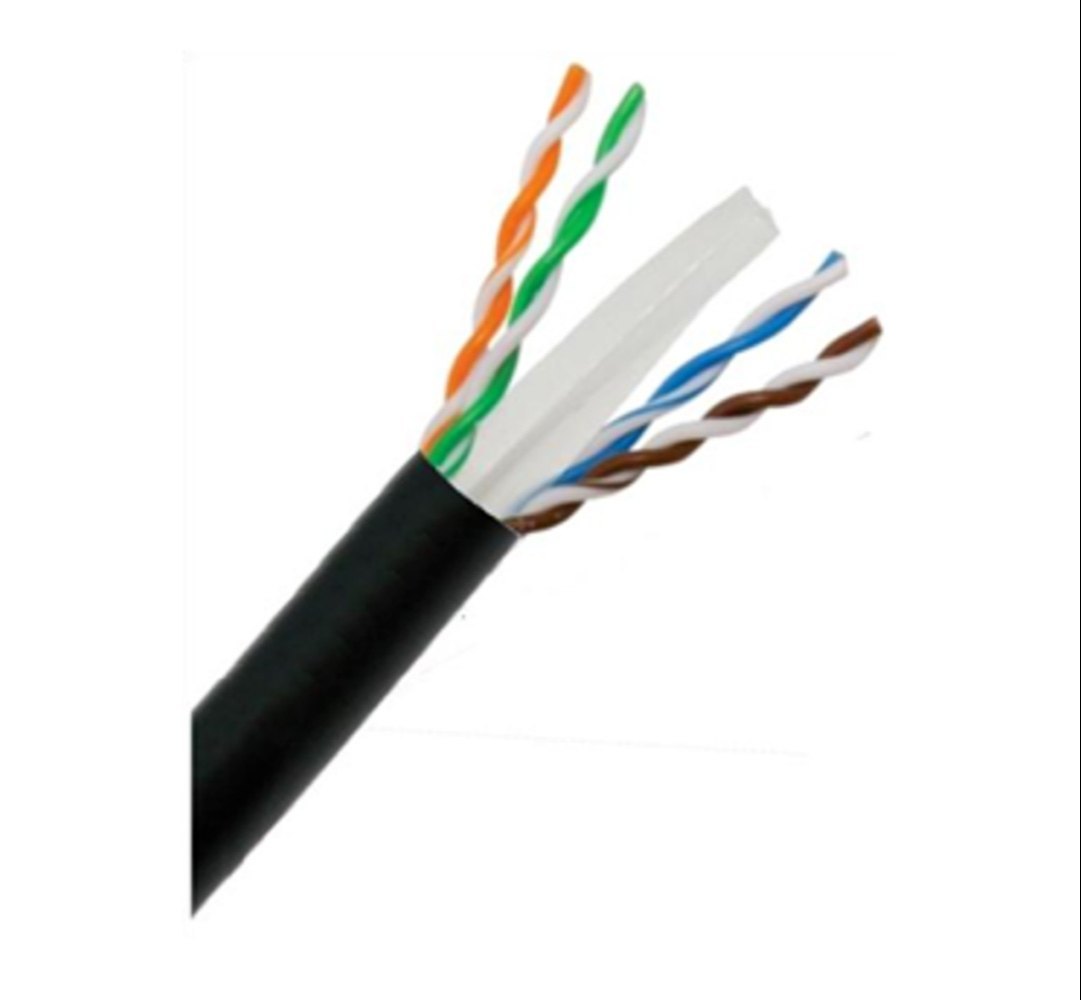

- UTP (Unshielded Twisted Pair) construction with 4 twisted pairs
- Compatible with industry standards: TIA/EIA-568-C.2, ISO/IEC 11801 Class E
- Ideal for long-distance outdoor networking, IP CCTV, and industrial LAN
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SP (Shield Plus) |
| Cable Category | CAT-6 |
| Conductor Material | 100% Pure Copper |
| Conductor Gauge | 23 AWG (±0.005mm) |
| Number of Pairs | 4 Twisted Pairs (8 Conductors) |
| Insulation Material | HDPE (High-Density Polyethylene) |
| Jacket Type | Double Layered PVC (Inner Soft PVC + Outer Rigid PVC) |
| Jacket Color | Black |
| Shielding | UTP (Unshielded Twisted Pair) |
| Cable Length | 270 Yards (Approx. 246.8 Meters) |
| Bandwidth Capacity | Up to 250 MHz |
| Data Transmission Rate | 10/100/1000 Mbps (Gigabit Ethernet) |
| Compliance Standards | TIA/EIA-568-C.2, ISO/IEC 11801 Class E |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
| Packaging | Roll/Bobbin Packed |
Applications
This cable is suitable for a wide range of outdoor networking applications such as IP CCTV installations, broadband infrastructure, long-distance LAN connectivity, and industrial Ethernet solutions. Its rugged design and high-performance capabilities make it an excellent choice for both commercial and residential use.
