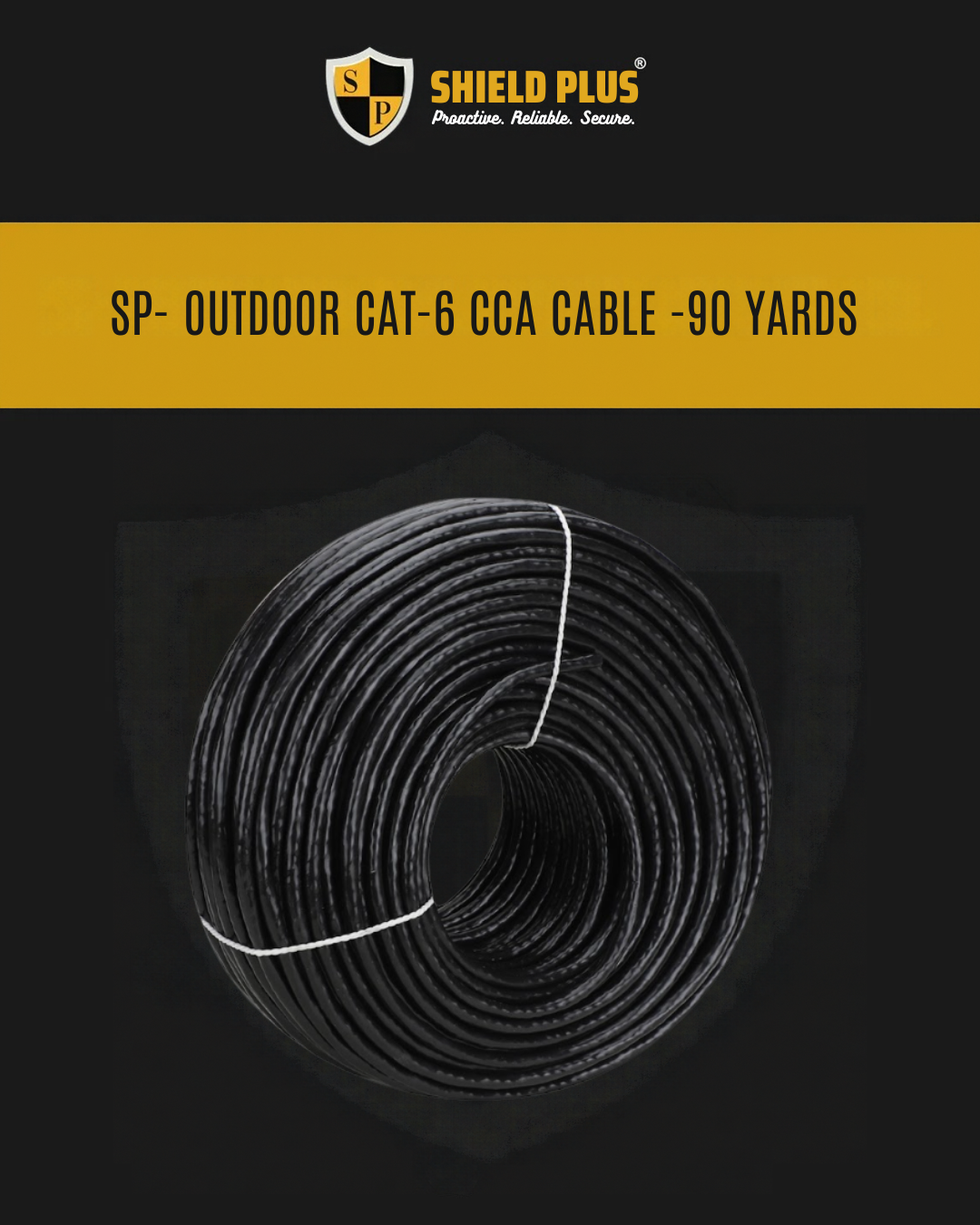

SP- OUTDOOR CAT-6 CCA CABLE -90 YARDS
SP- OUTDOOR CAT-6 CCA CABLE -90 YARDS
Couldn't load pickup availability

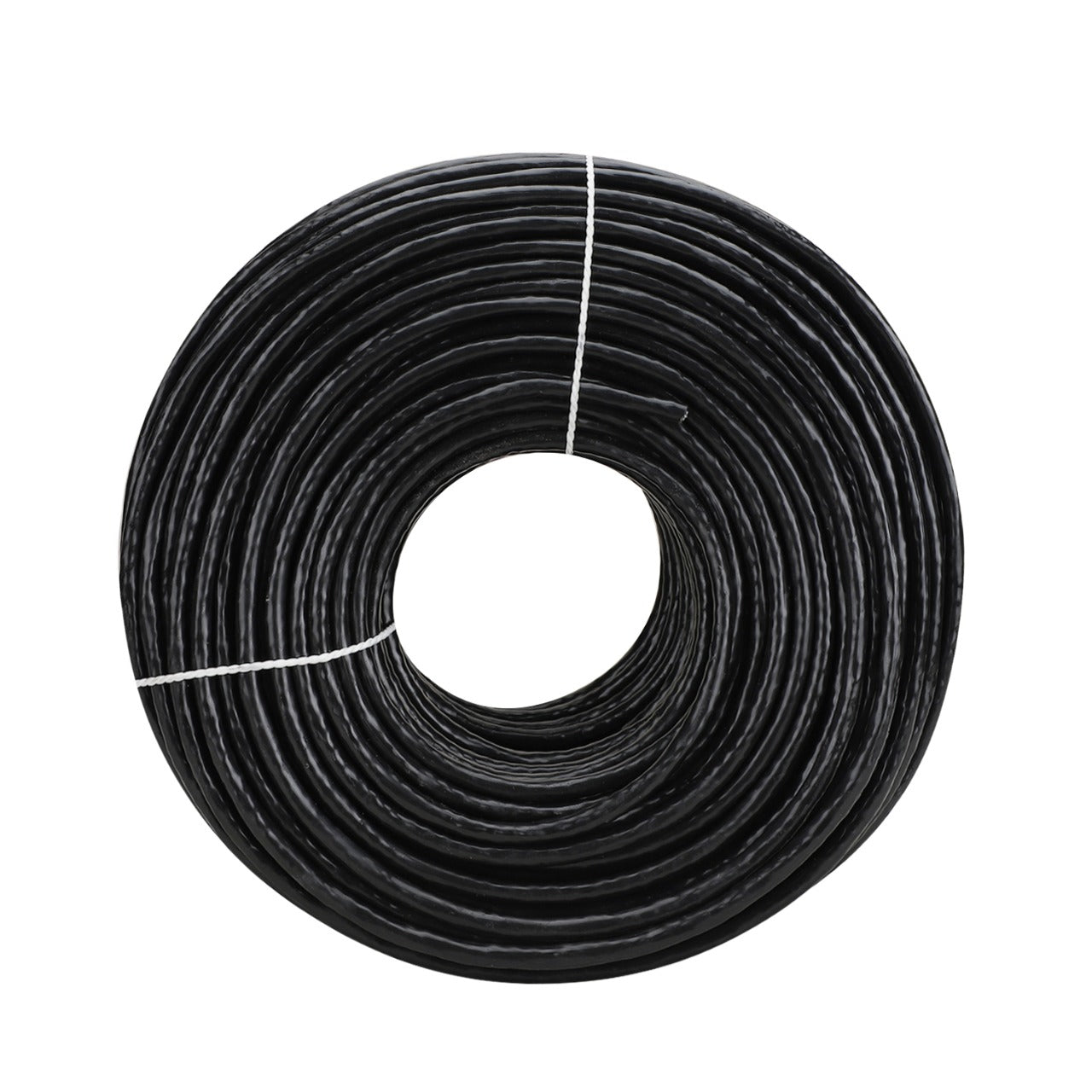

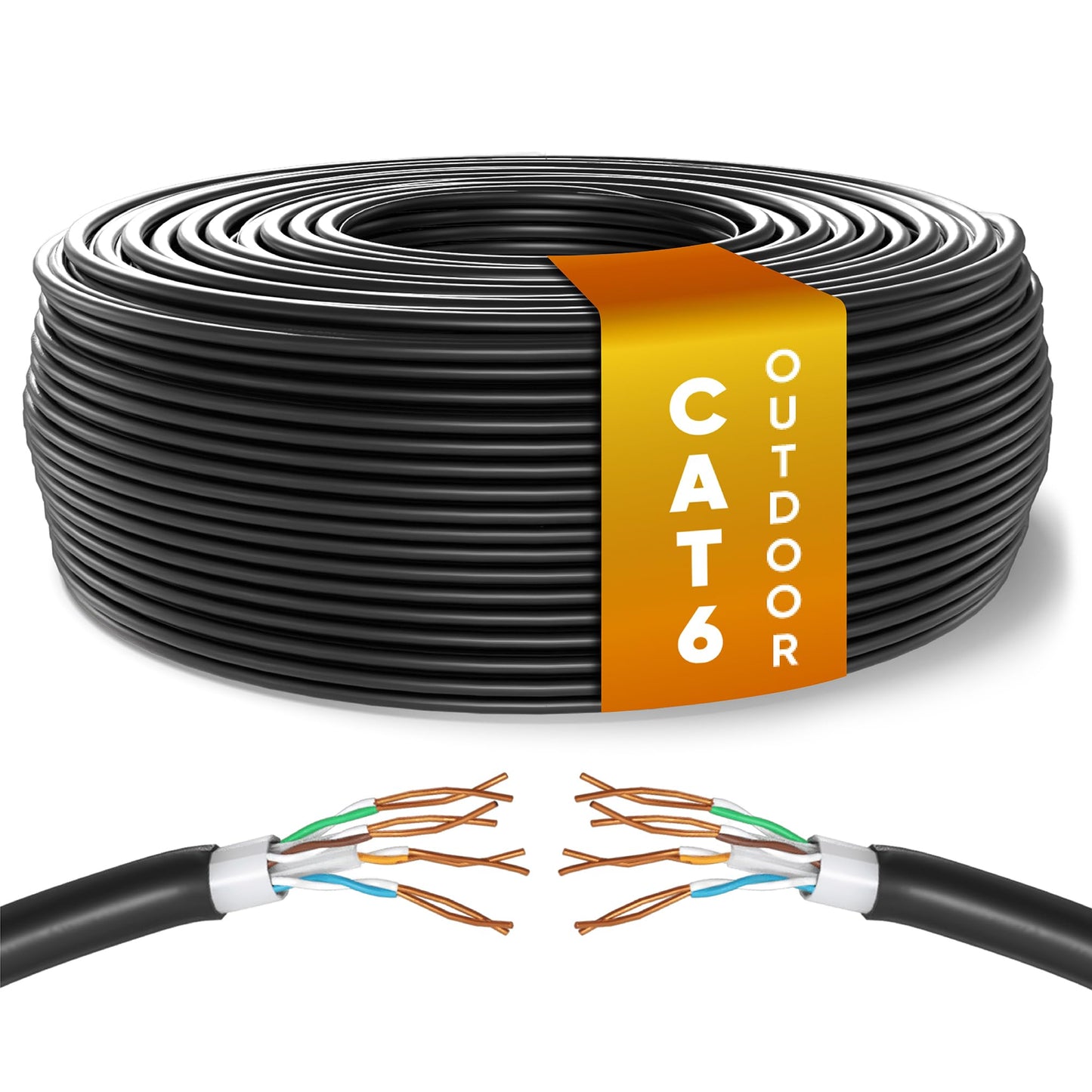

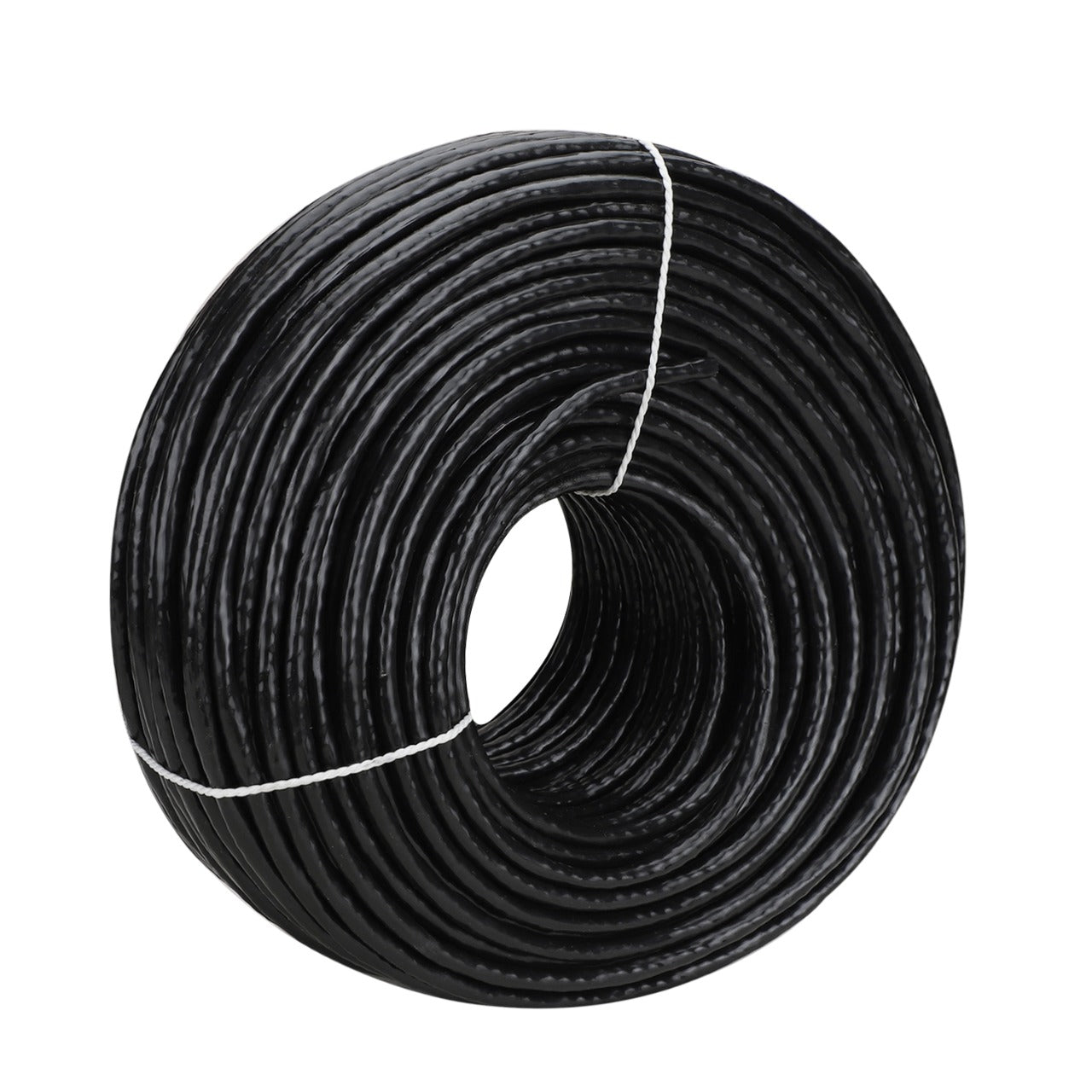

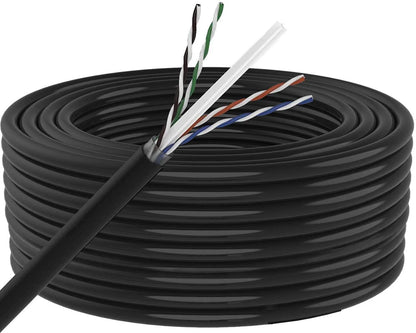

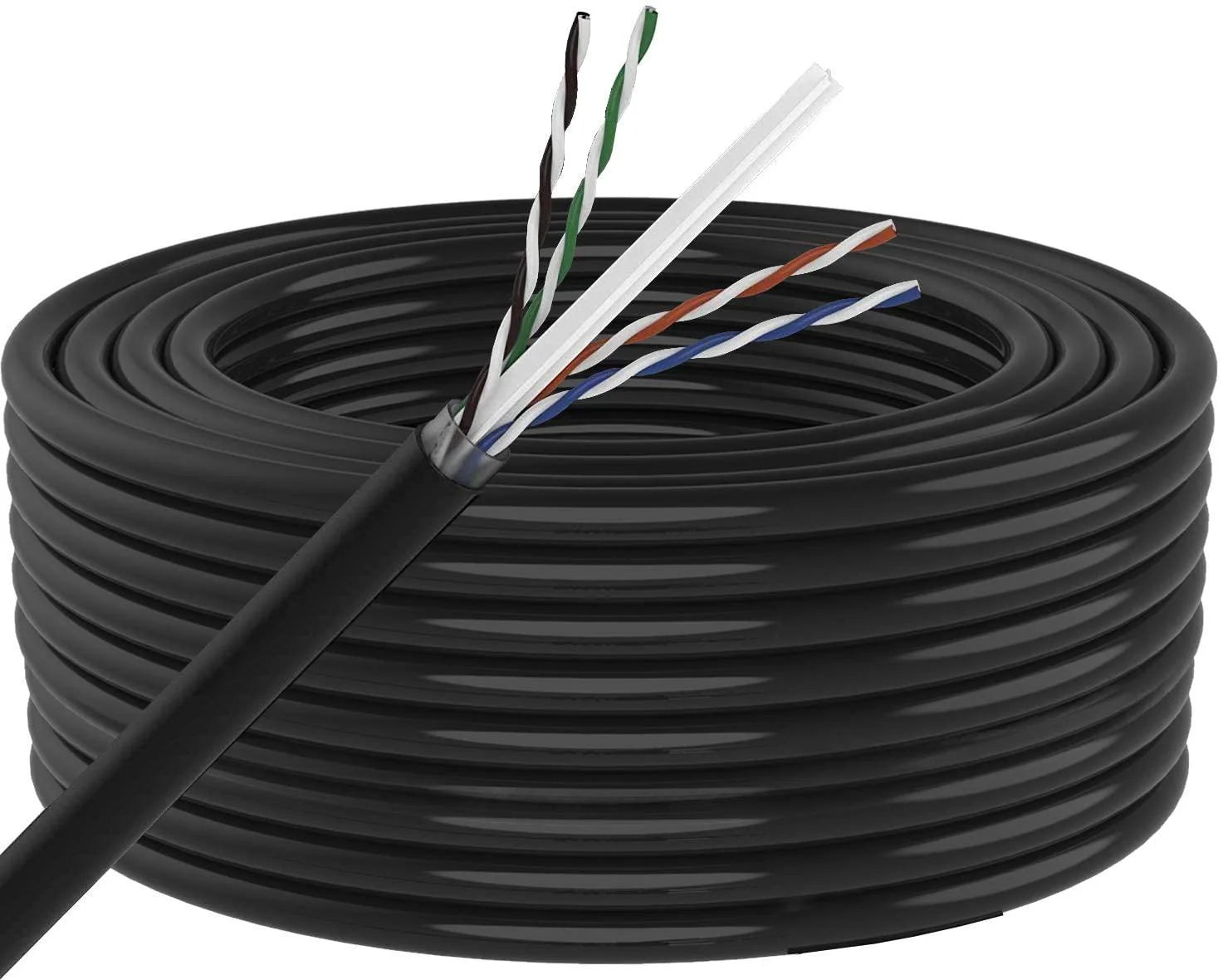

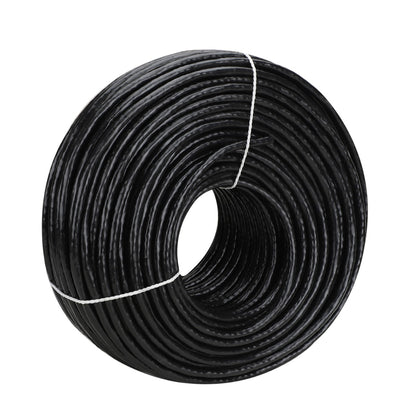

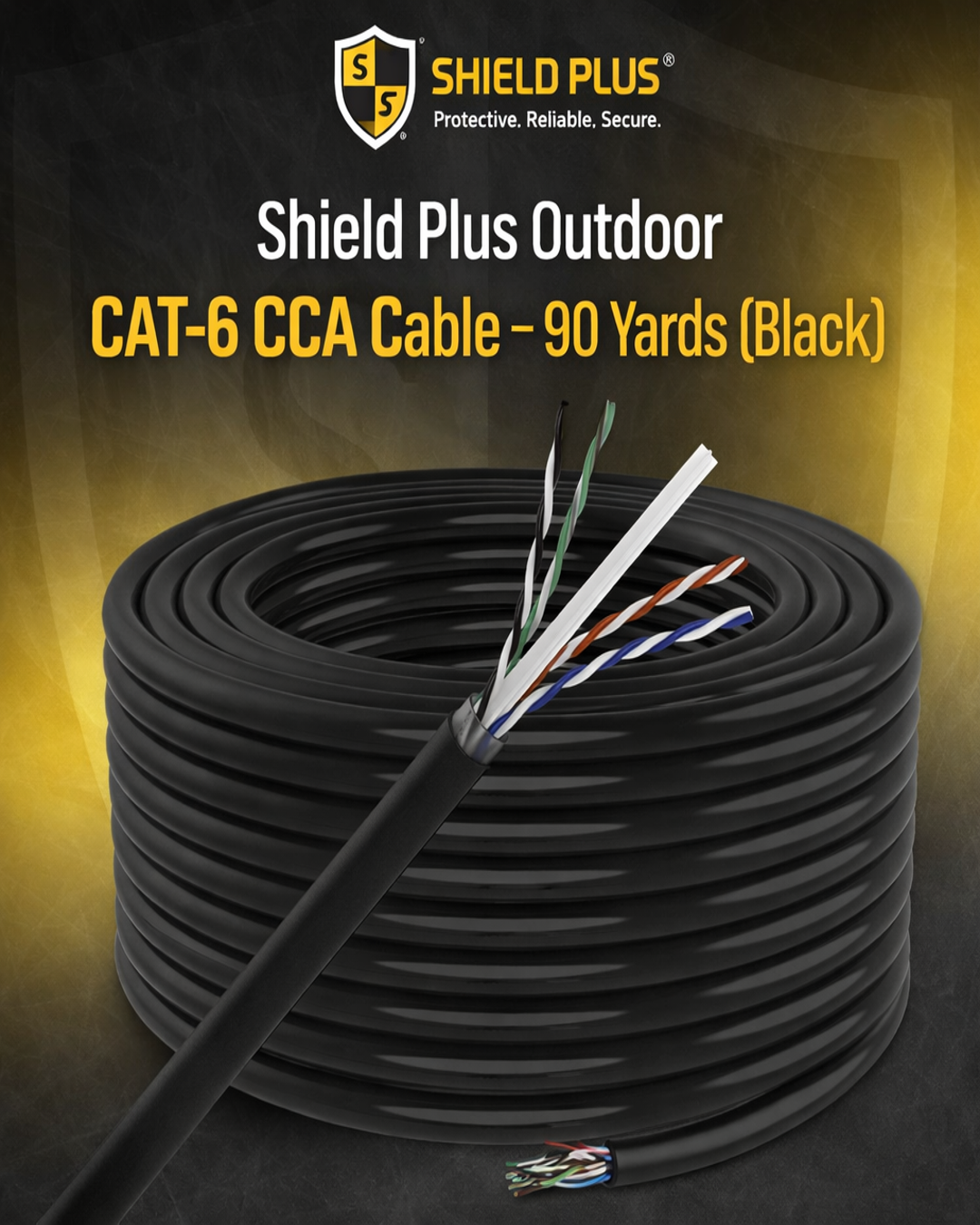

Shield Plus Outdoor CAT-6 CCA Cable – 90 Yards (Black)
The Shield Plus Outdoor CAT-6 CCA Cable is a high-performance networking solution engineered for exposed environments. Designed to deliver Gigabit Ethernet and Power over Ethernet (PoE/PoE+) over medium-distance backbone links, this cable features a cost-efficient copper-clad aluminum (CCA) core and a rugged, outdoor-rated UV-stabilized polyethylene (PE) jacket
Ideal for rooftop access points, building-to-building links, perimeter CCTV, or any structured outdoor application, the cable incorporates water-blocking tape to resist moisture ingress, and precision-twisted pairs for reduced crosstalk and stable transmission up to 250 MHz. It complies with TIA/EIA‑568‑C.2, ISO/IEC 11801, and RoHS standards.
Key Features:
- Category 6 Class E: Supports 10/100/1000 Mbps Ethernet with bandwidth up to 250 MHz
- Outdoor-Grade Jacket: UV-resistant black PE sheath for durability in sun, rain, and harsh conditions
- Moisture Barrier: Water-blocking tape prevents moisture ingress in conduit and outdoor installs
- Cost-Effective CCA Conductors: 0.51 mm (24 AWG) copper-clad aluminum delivers balance of performance and economy
- PoE & PoE+ Compatible: Suitable for IEEE 802.3af/at applications like IP cameras and access points
- Installer Friendly: Supplied in easy-pull 90-yard roll for quick deployment on-site
- Standards Compliant: TIA/EIA‑568‑C.2, ISO/IEC 11801 Class E, and RoHS compliant
Product Specifications:
| Attribute | Details |
|---|---|
| Brand | Shield Plus |
| Category / Class | CAT‑6 / Class E |
| Conductor Material | Copper-Clad Aluminum (CCA) |
| Conductor Size | 24 AWG (0.51 mm) |

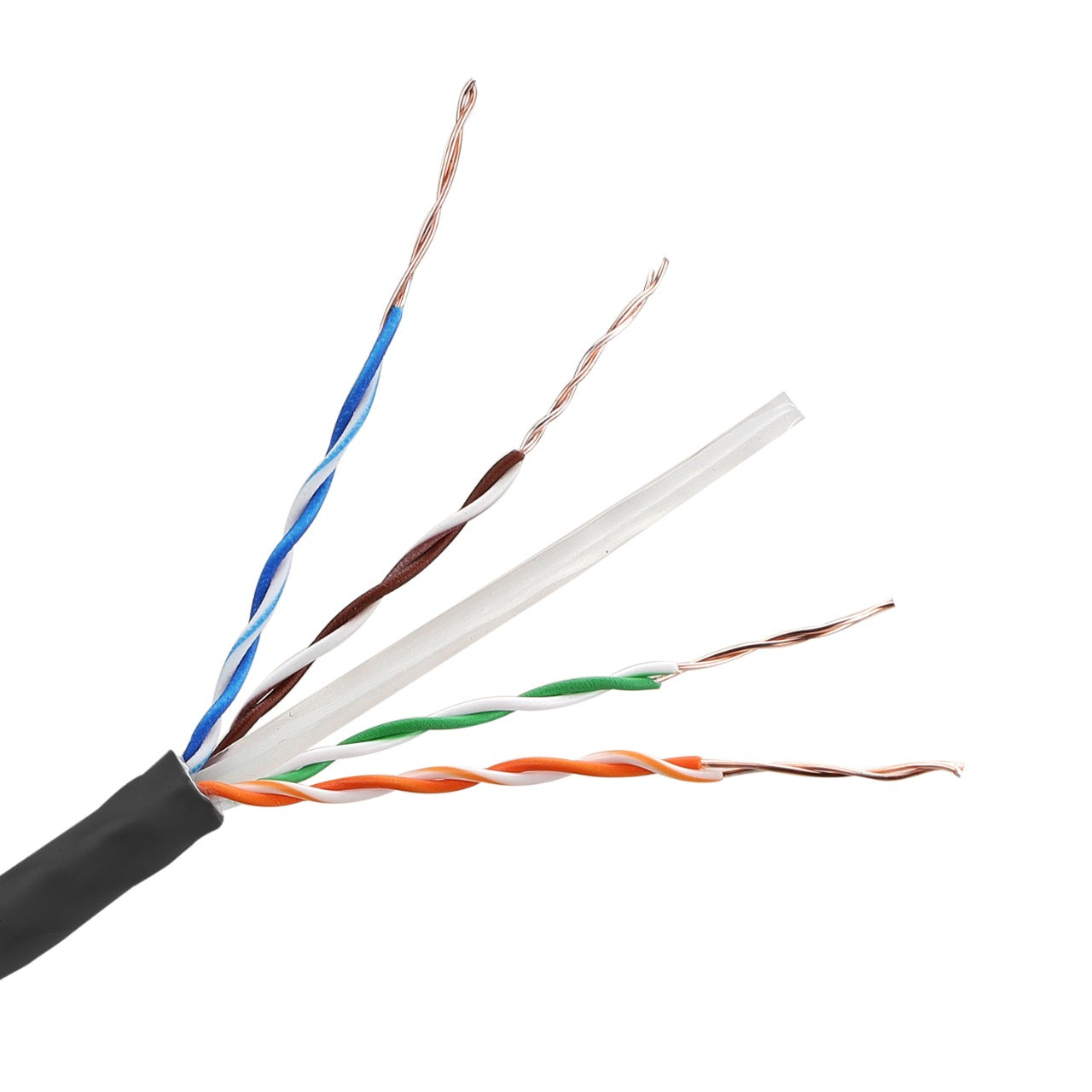

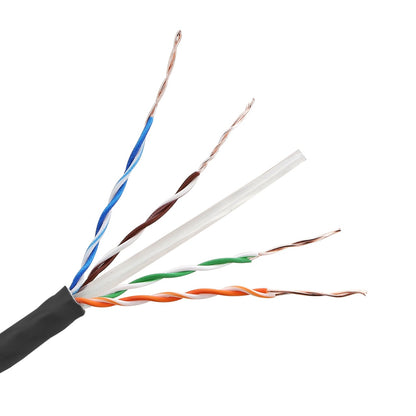

| No. of Conductors | 8 (4 twisted pairs) |

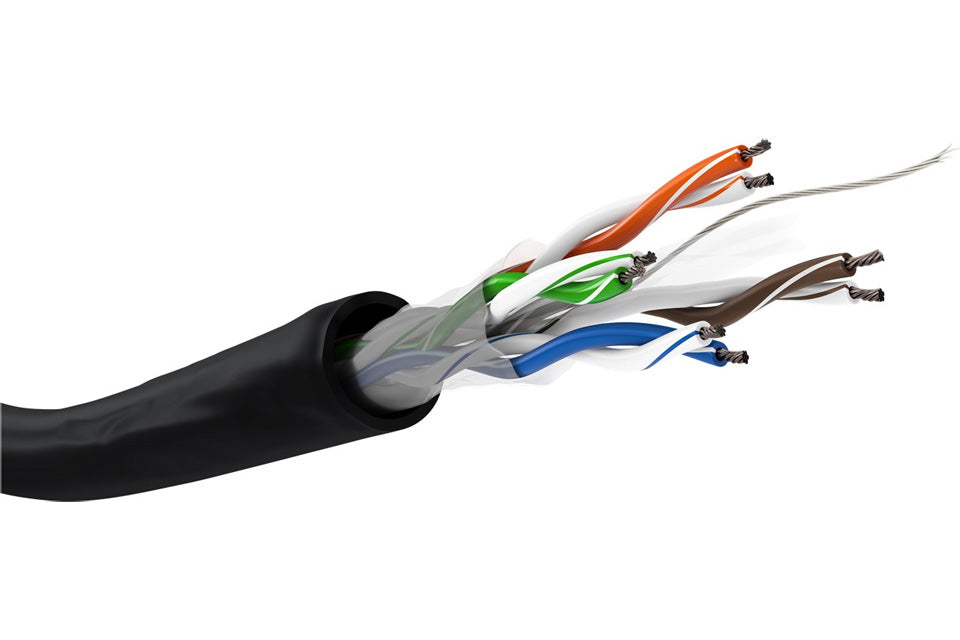

| Cable Construction | U/UTP (Unshielded Twisted Pair) |
| Insulation | High-density polyethylene (HDPE) |
| Separator | PE Cross-Filler |
| Moisture Protection | Water-blocking tape, gel-free dry barrier |
| Outer Jacket | UV-stabilized Polyethylene (PE), Black |
| Overall Diameter | ≈ 6.3 mm |
| Bandwidth | 250 MHz (typical) |
| Data Rate | 10/100/1000 Mbps Ethernet |
| PoE Support | IEEE 802.3af/at (PoE/PoE+) |
| Impedance | 100 Ω ± 15 Ω |
| Propagation Delay Skew | ≤ 45 ns / 100 m |
| DC Resistance (Loop) | ≤ 28 Ω / 100 m |
| Temperature Range | Installation: -20 °C to +75 °C Operation: -40 °C to +80 °C |
| Flame Rating | IEC 60332‑1 (single-flame test) |
| Length Supplied | 90 Yards (≈ 82.3 Meters) |
| Compliance | TIA/EIA‑568‑C.2, ISO/IEC 11801, RoHS |
