Shieldplus
SP- OUTDOOR CAT-6 CCA CABLE-270 YARDS
SP- OUTDOOR CAT-6 CCA CABLE-270 YARDS
Couldn't load pickup availability

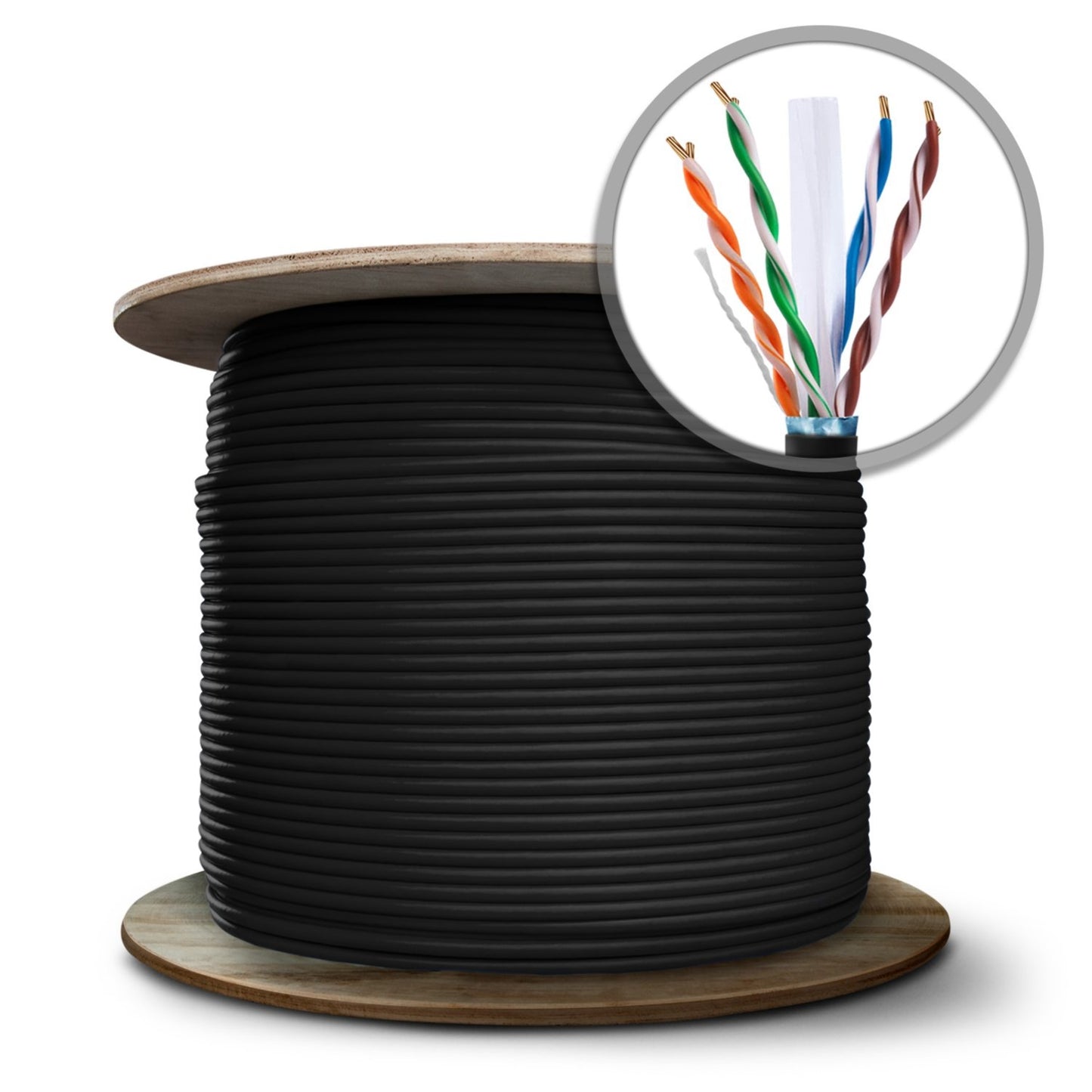

Shield Plus Outdoor CAT-6 CCA Cable – 270 Yards (Black)
The Shield Plus Outdoor CAT-6 CCA Cable is a robust and cost-effective networking solution engineered for reliable Gigabit Ethernet over long distances in outdoor environments. With a total length of 270 Yards (approx. 246.9 meters), it is ideal for bulk installations in commercial, industrial, or campus-wide deployments.

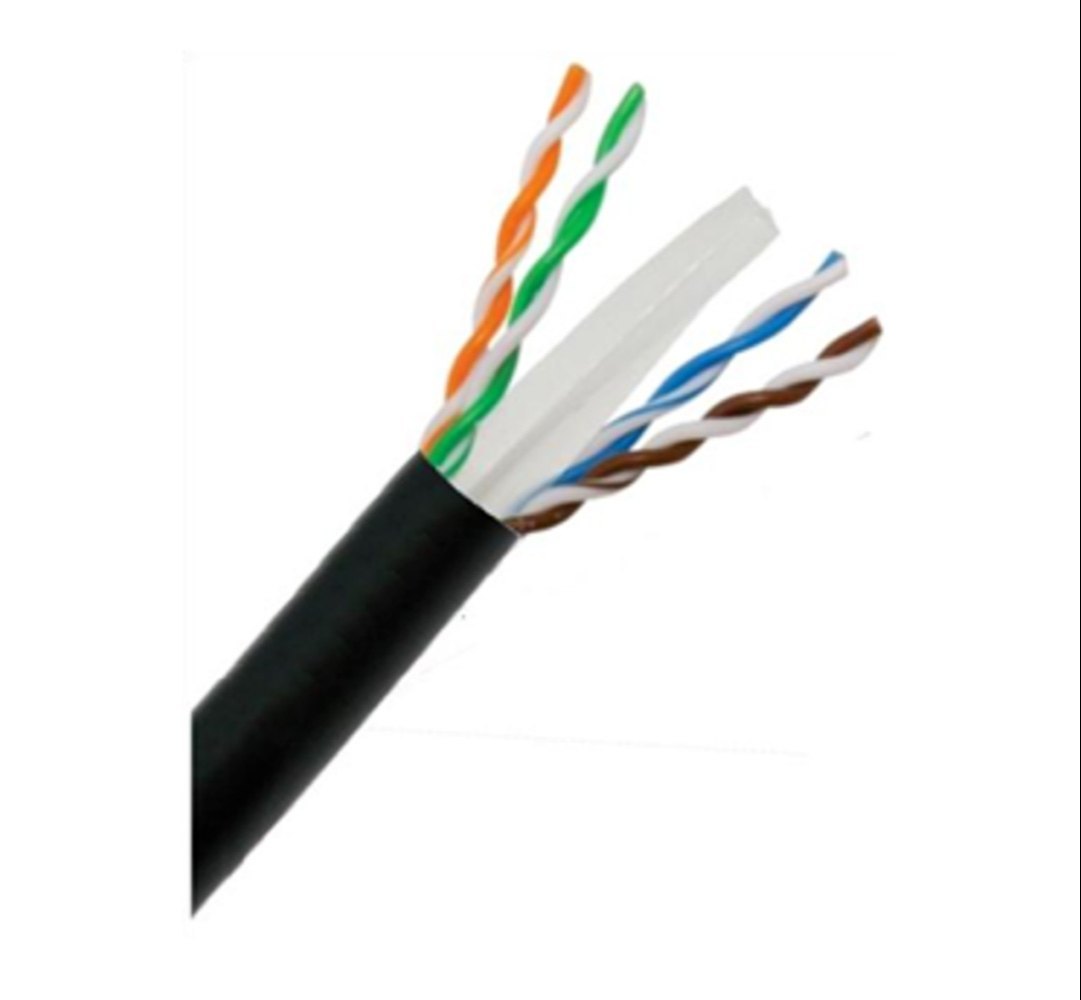

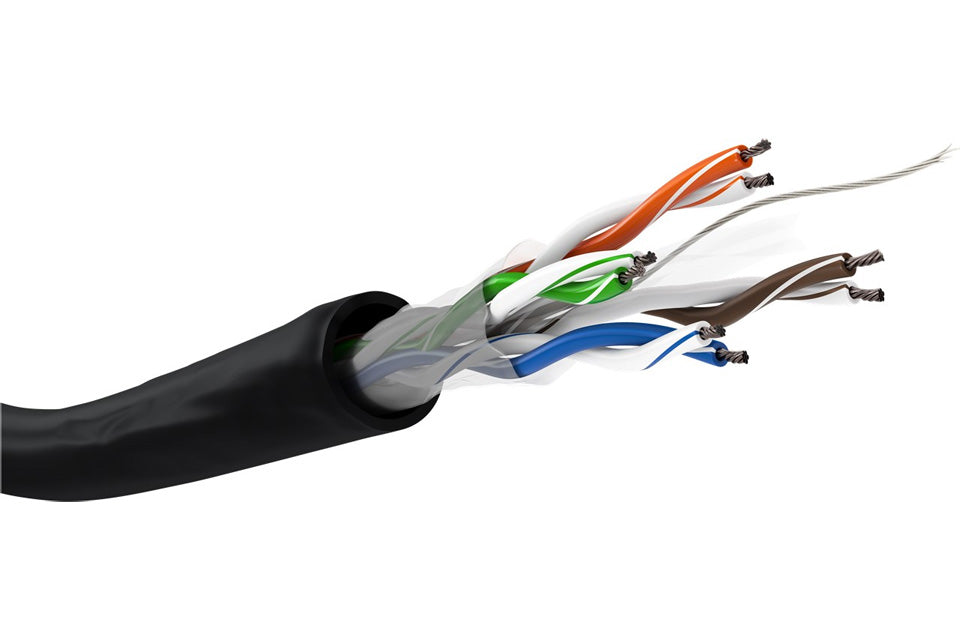

This cable features Copper-Clad Aluminum (CCA) conductors, four precision UTP twisted pairs, and a UV-resistant black polyethylene (PE) jacket that protects against sunlight, moisture, abrasion, and environmental stress. Whether you're setting up PoE-powered IP cameras, building-to-building LAN extensions, or perimeter surveillance systems, this cable is built for performance and durability.
Key Features:
- Extended Length: 270 Yards (≈ 246.9 Meters) for long cable runs and large-scale projects.
- Category 6 Rated: Delivers bandwidth up to 250 MHz and supports 10/100/1000 Mbps Ethernet.
- CCA Conductors: Copper-Clad Aluminum (24 AWG / 0.51 mm) offers cost-effective performance for medium to long distances.
- Outdoor-Ready: UV-resistant PE jacket designed for weather resistance and long-term exposure.
- Unshielded Twisted Pair: 4 twisted pairs (8 conductors) minimize crosstalk while maintaining flexibility and ease of installation.
- PoE/PoE+ Compatible: Suitable for use with Power over Ethernet devices such as IP cameras and wireless access points.
- Flame Retardant: Meets IEC 60332-1 flame resistance standards for safety in conduit or building exteriors.
- Easy to Deploy: Supplied in roll form for simple handling, pulling, and routing.
Technical Specifications:
| Attribute | Details |
|---|---|
| Brand | Shield Plus |
| Cable Category | CAT-6 / Class E |
| Conductor Material | Copper-Clad Aluminum (CCA) |
| Conductor Size | 24 AWG (0.51 mm) |
| No. of Pairs | 4 Twisted Pairs (8 Conductors) |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Length | 270 Yards (Approx. 246.9 Meters) |
| Outer Jacket | Black UV-Resistant Polyethylene (PE) |
| Insulation | High-Density Polyethylene (HDPE) |
| Bandwidth | Up to 250 MHz |
| Data Rate | 10/100/1000 Mbps (Gigabit Ethernet) |
| Impedance | 100 ±15 ohms |
| Temperature Rating | -20°C to +75°C |
| Flame Resistance | IEC 60332-1 (Single Flame Test) |
| Compliance | TIA/EIA-568-C.2, ISO/IEC 11801, RoHS |
| Applications | CCTV, LAN, IP Cameras, Outdoor Network Installations |
Applications:
- Outdoor IP camera installations
- Backbone LAN cabling between buildings
- Wireless access points (WAPs)
- PoE-enabled security systems
- Campus or facility-wide structured cabling
Shield Plus Outdoor CAT-6 CCA Cable offers the reliability, range, and ruggedness required for demanding outdoor installations—without the high cost of full copper cable.
