Shieldplus
SP- INDOOR CAT-6 UTP 305M CABLE -23 AWG- COPPER
SP- INDOOR CAT-6 UTP 305M CABLE -23 AWG- COPPER
Couldn't load pickup availability
SP CAT-6 Indoor UTP Cable – 305 Meters (1000 Feet, Pure Copper)
The SP (Shield Plus) Indoor CAT-6 UTP Cable – 305 Meters is a high-performance LAN cable engineered for efficient and stable data transmission in indoor environments. Constructed with 100% pure bare copper conductors and premium Skin-Foam-Skin (SFS) insulation, this cable delivers superior signal quality, reduced crosstalk, and enhanced electrical performance. It is designed for use in structured cabling systems for data centers, office buildings, and commercial installations.
Key Features
- 100% pure bare copper conductor for maximum conductivity and durability
- CAT-6 standard with bandwidth support up to 250 MHz
- Triple-layer SFS insulation for reduced signal loss and enhanced signal integrity
- Supports data rates of 10/100/1000 Mbps (Gigabit Ethernet)

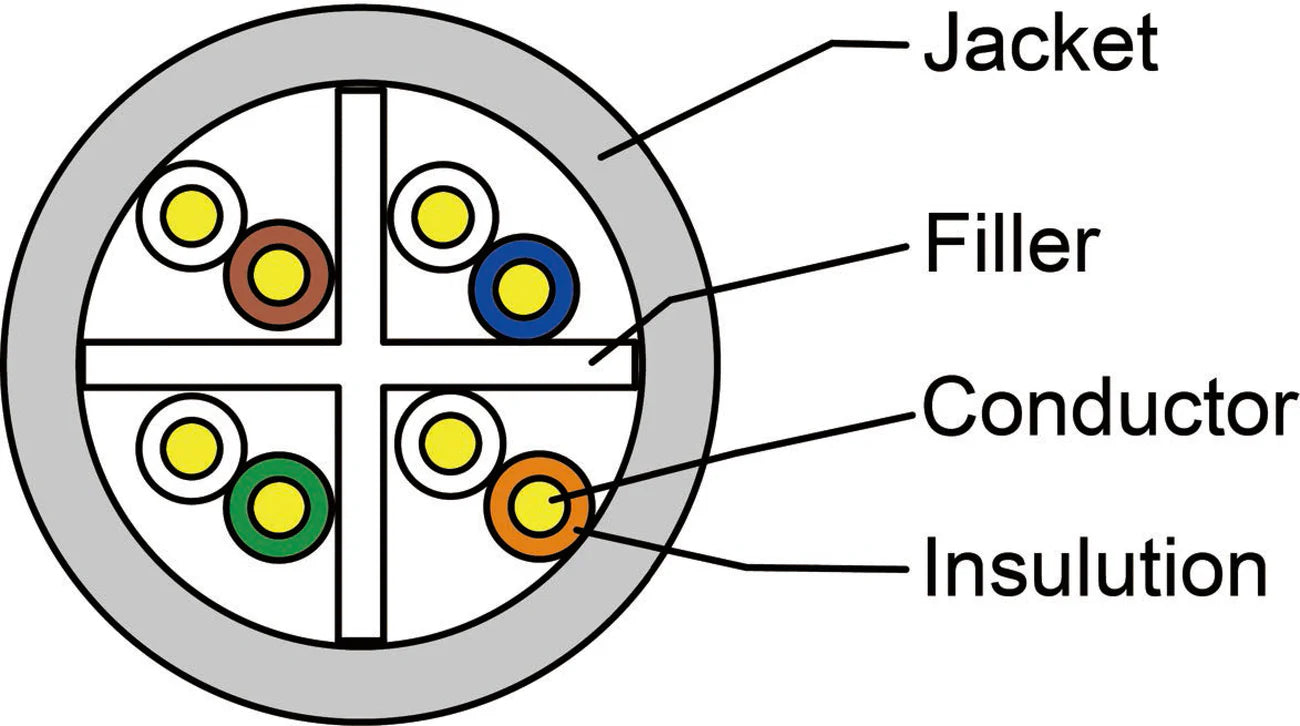

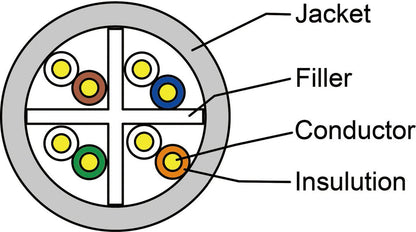

- Unshielded Twisted Pair (UTP) construction with 4 twisted pairs
- Indoor-grade PVC jacket suitable for structured wiring
- Complies with TIA/EIA-568-C.2, ISO/IEC 11801, and RoHS standards
- Packaged in an easy pull box for convenient installation
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SP (Shield Plus) |
| Cable Category | CAT-6 |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Conductor Material | 100% Pure Bare Copper |
| Conductor Size | 23 AWG (0.57mm ± 0.005mm) |
| Number of Pairs | 4 Twisted Pairs (8 Conductors) |
| Insulation Type | Skin-Foam-Skin (SFS) Polyolefin |
| Jacket Material | PVC (Indoor Grade) |
| Cable Length | 305 Meters (1000 Feet) |
| Bandwidth Support | Up to 250 MHz |
| Data Rate | 10/100/1000 Mbps (Gigabit Ethernet) |
| Compliance Standards | TIA/EIA-568-C.2, ISO/IEC 11801, RoHS |
| Operating Temperature | -10°C to +60°C |
| Packaging | Easy Pull Box |
| Color | Grey / White (Customizable) |
Applications
This cable is ideal for high-performance indoor networking applications including data centers, structured cabling in buildings, commercial IT setups, and office networks. Its superior build quality and triple-layer insulation make it a reliable and long-lasting solution for demanding installations.
