Shieldplus

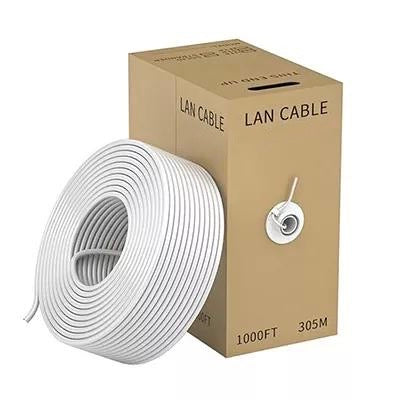

SP- INDOOR CAT-6 SFTP 305M CABLE -23 AWG- COPPER
SP- INDOOR CAT-6 SFTP 305M CABLE -23 AWG- COPPER
Regular price
Rs. 12,390.00
Regular price
Sale price
Rs. 12,390.00
Unit price
per
Taxes included.
Couldn't load pickup availability

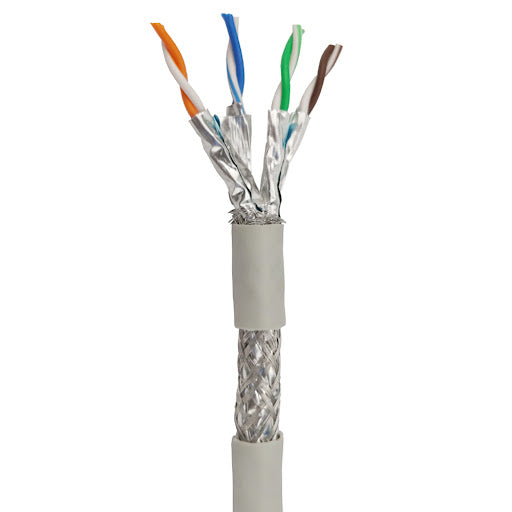

The SP-Indoor CAT-6 S/FTP Cable – 305M is a high-performance shielded Ethernet cable designed for high-speed data transmission in demanding indoor networking environments. Built with 100% pure copper conductors and individual foil shielding on each twisted pair along with an overall braided shield, this cable ensures exceptional protection against EMI/RFI and crosstalk, enabling stable 10 Gigabit Ethernet performance. It is ideal for data centers, high-speed networks, industrial applications, and mission-critical structured cabling systems.
| Feature | Specification |
| Brand | SP (Shield Plus) |
| Cable Category | CAT-6 (Augmented Category 6) |
| Cable Type | S/FTP (Shielded Foiled Twisted Pair) |
| Conductor Material | 100% Pure Bare Copper |
| Conductor Size | 23 AWG (0.57mm ± 0.005mm) |
| Number of Pairs | 4 Twisted Pairs (8 Conductors) |
| Insulation Material | Foam Polyethylene (FPE) or Skin-Foam-Skin PE |
| Pair Shielding | Individually Foiled (Aluminum-Mylar Foil) |
| Overall Shielding | Tinned Copper Braid |
| Jacket Material | LSZH or PVC (Indoor grade) |
| Jacket Color | Grey (Custom colors available) |
| Length | 305 Meters (1000 Feet) |
| Bandwidth Capacity | Up to 500 MHz |
| Data Rate Support | Up to 10 Gbps (10GBASE-T) |
| Standards Compliance | ISO/IEC 11801, TIA/EIA-568-C.2, EN 50173, RoHS |
| Flame Rating | IEC 60332-1, LSZH Optional |
| Operating Temperature | -20°C to +60°C |
| Packaging | Easy-pull Box or Wooden Drum |
