Shieldplus

SP-HDMI VIDEO WALL CONTROLLER 4K

Rs. 15,930.00

Sale Sold out

Taxes included.

No Of Sizes 2×2 3×3 4×4

No. Of Pcs 1 2

Quantity

Video Wall Controller

This video wall controller supports HDMI input and multiple output configurations to create large dynamic display walls. It is ideal for retail displays, exhibitions, digital signage, control rooms, restaurants, teaching, and trade shows. The operation is plug and play.

General Features

Supports HDMI input; sometimes DVI, DP, USB-C depending on model
Multiple HDMI outputs: 4, 9, or 16 depending on model
Flexible splicing modes: 2x2, 3x3, 4x4, 1xn, nx1, cascading supported
Supports 8/10/12 bit deep color
Control options: IR remote, front panel buttons, RS-232, Ethernet/Web UI
Extras: Image rotation, audio out, bezel correction
Metal case housing with 12V DC power adapter
Moderate power draw

Input/Output & Resolution

Feature	Specification
Input	HDMI (1.4–2.0), sometimes DVI, DP, USB-C
Max Input Resolution	4K@30Hz (standard), up to 4K@60Hz (premium units)
Output	4×1080p@60Hz, 9×1080p@60Hz, or 16×1080p@60Hz depending on model
Audio Format	Stereo
Input Cable Length	≤8m AWG26 HDMI standard cable
Output Cable Length	≤10m AWG26 HDMI standard cable
Max Working Current	0.5A - 0.9A depending on model
Power Adapter	AC 100V-240V, 50/60Hz; Output DC 12V 1A - 2A
Operating Temperature	-10℃ to +45℃

Video Wall Layouts

Model	Splicing Mode	HDMI Outputs	Main Function
2x2 Controller	2x2, 1xn, nx1, cascading supported	4 outputs	Divide input signal into 4 blocks for 4 display units

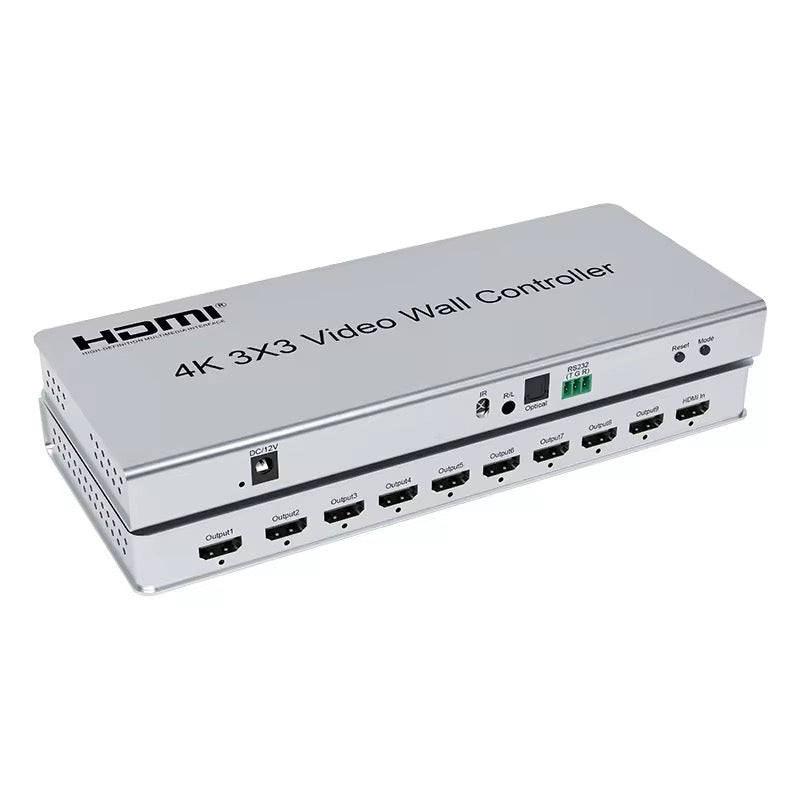

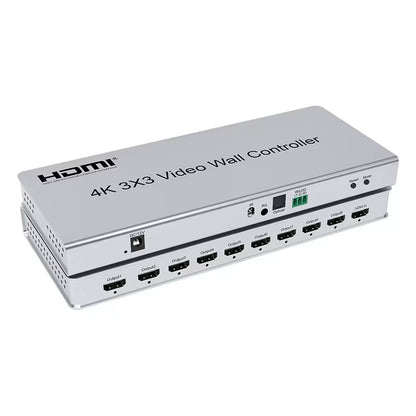

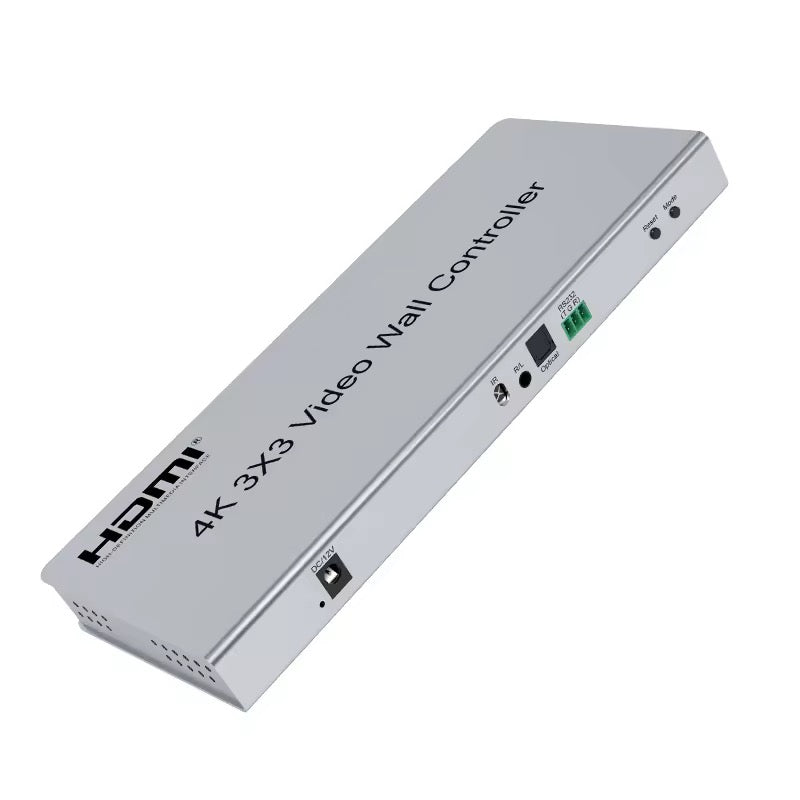

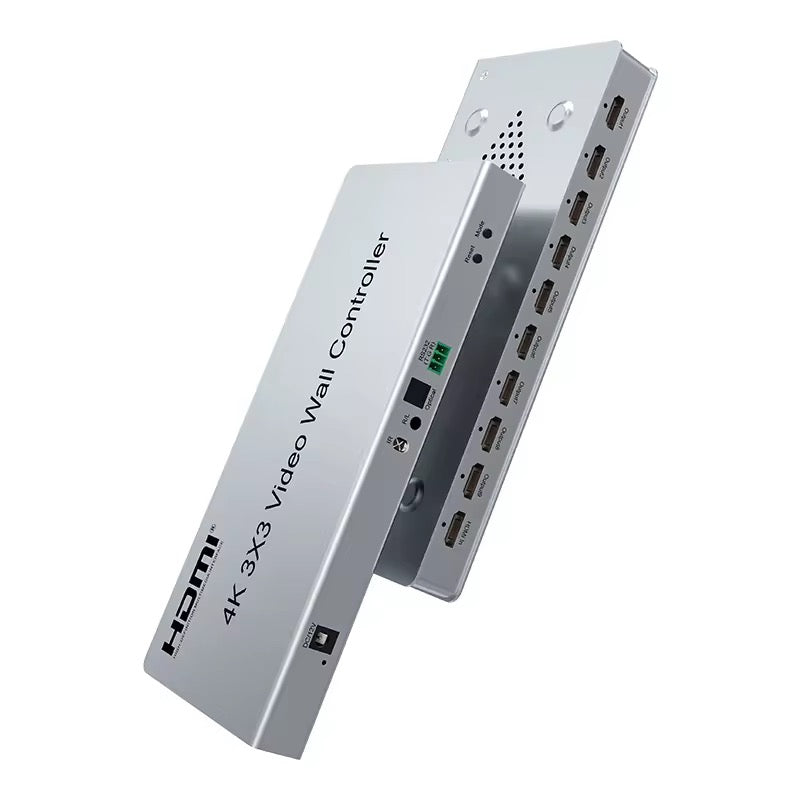

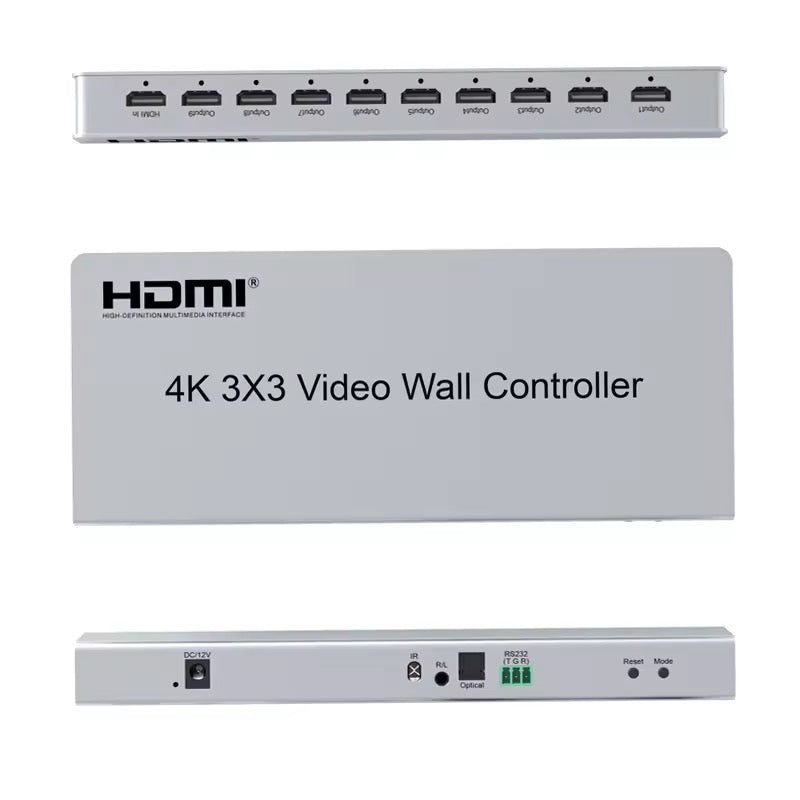

3x3 Controller	3x3	9 outputs	Divide input signal into 9 blocks for 9 display units

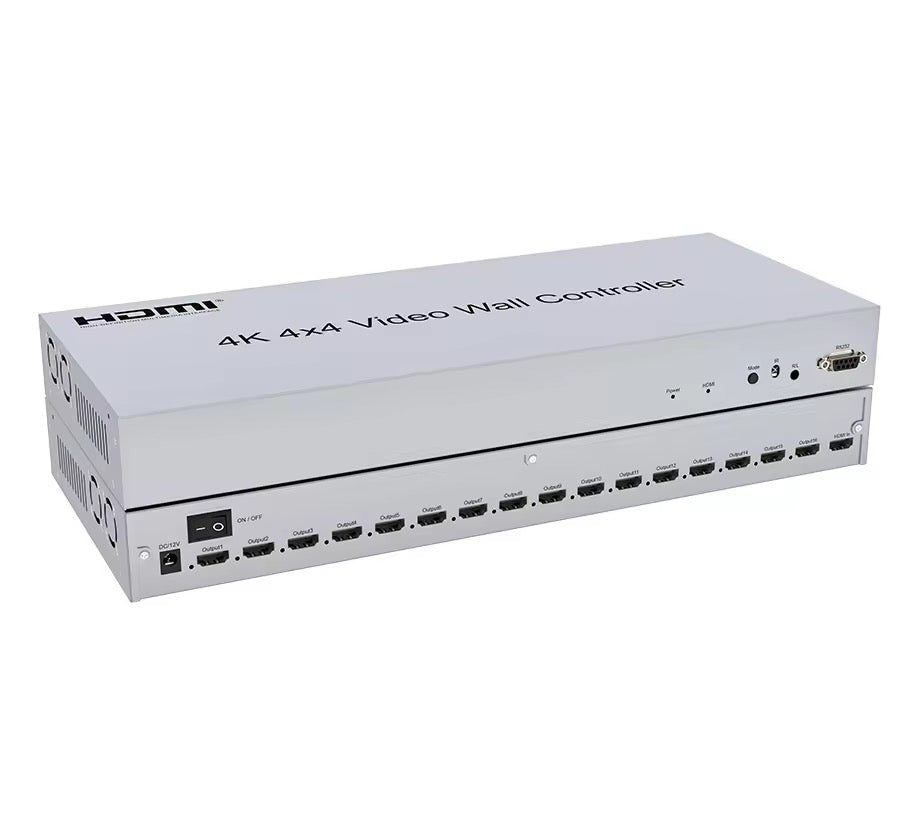

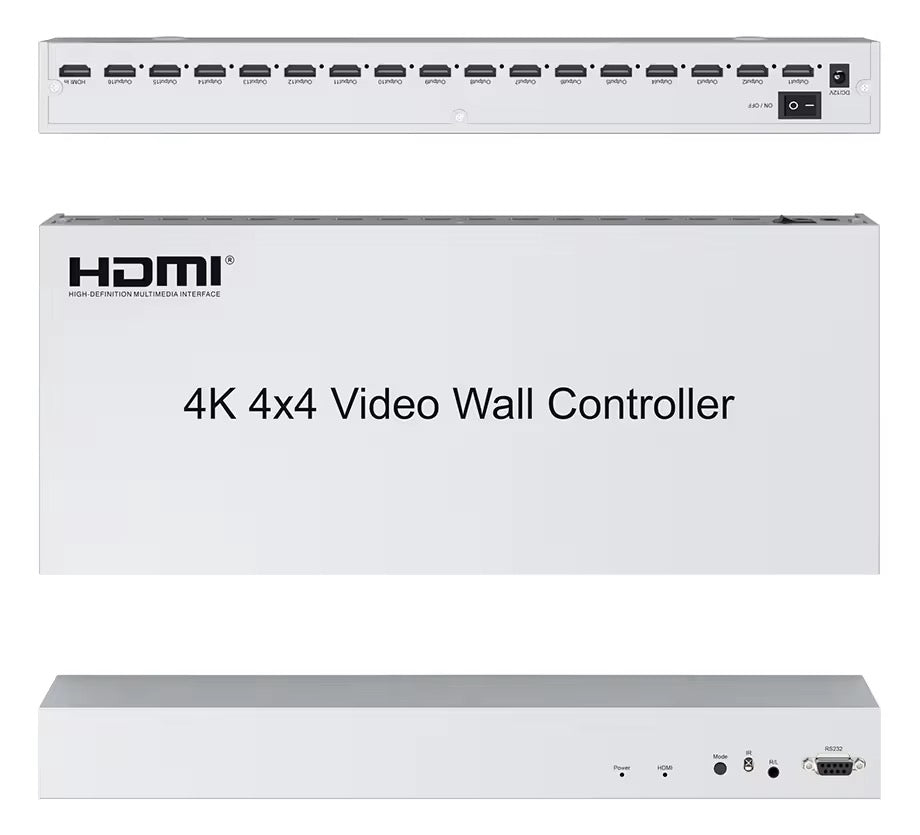

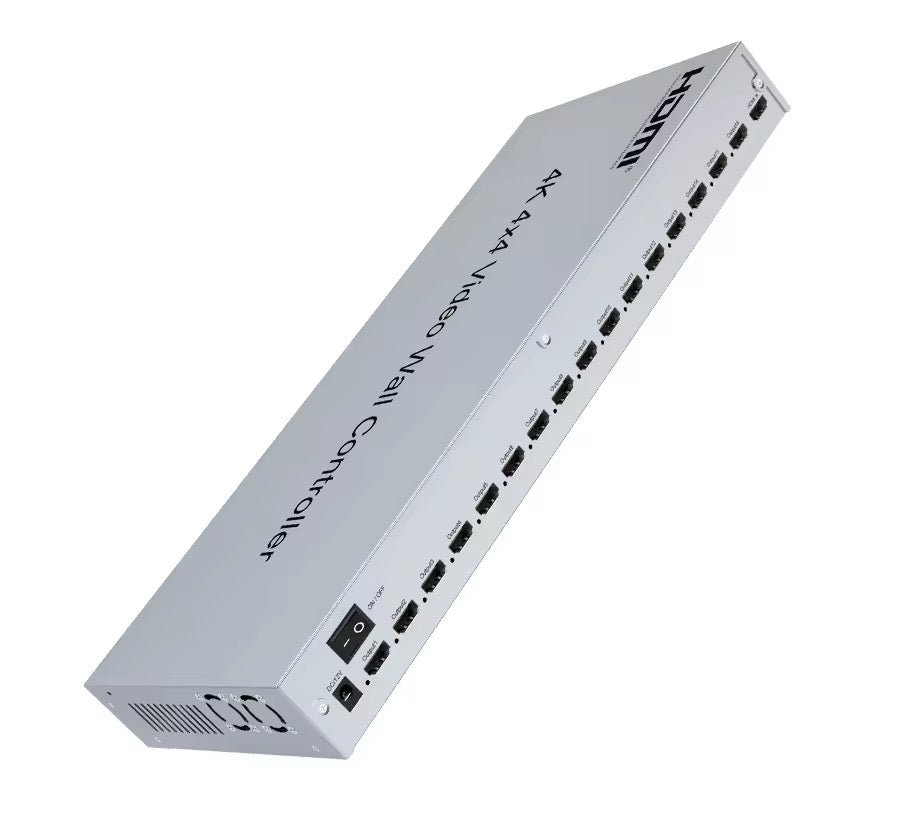

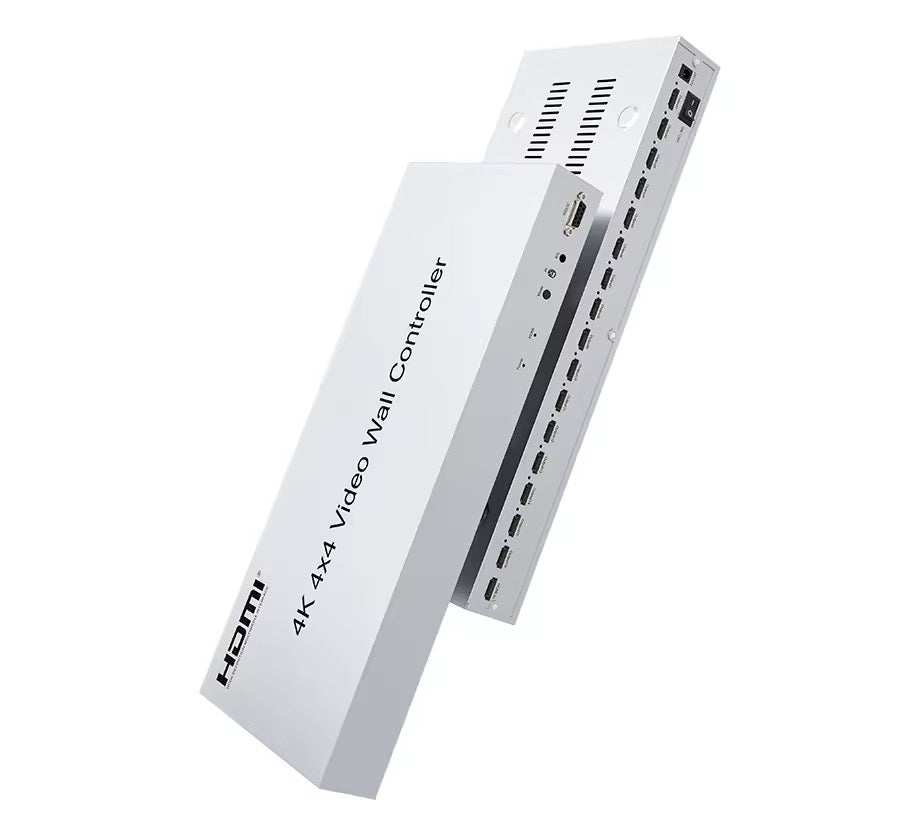

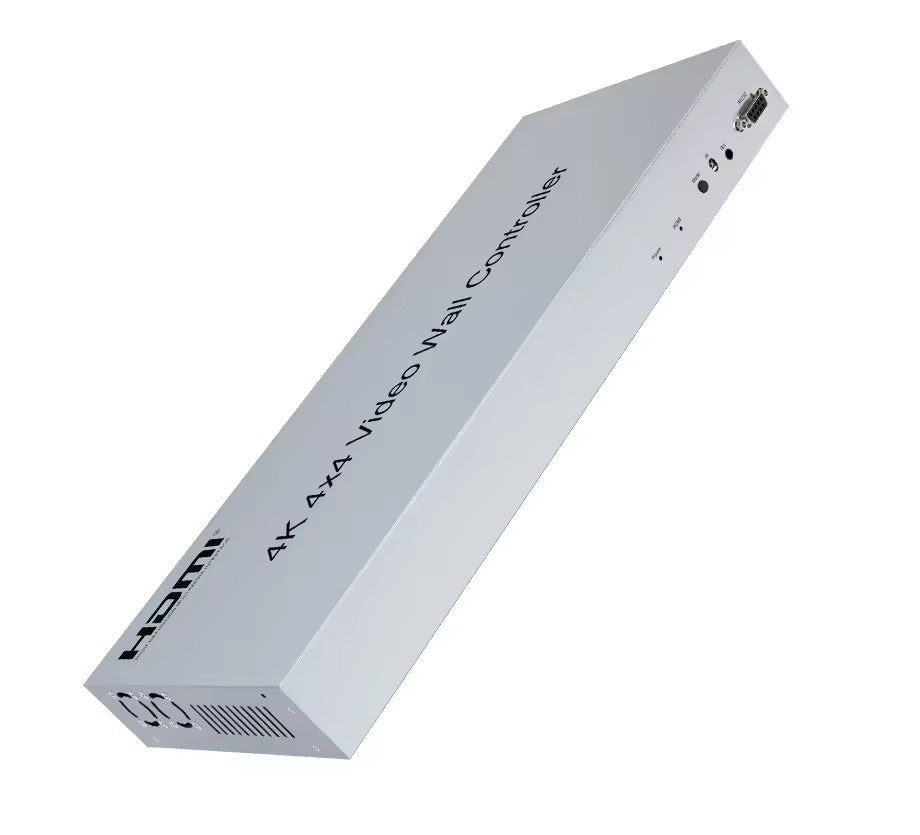

4x4 Controller	4x4	16 outputs	Divide input signal into 16 blocks for 16 display units
