SP- HDMI MATRIX 2 IN *2 OUT -4K

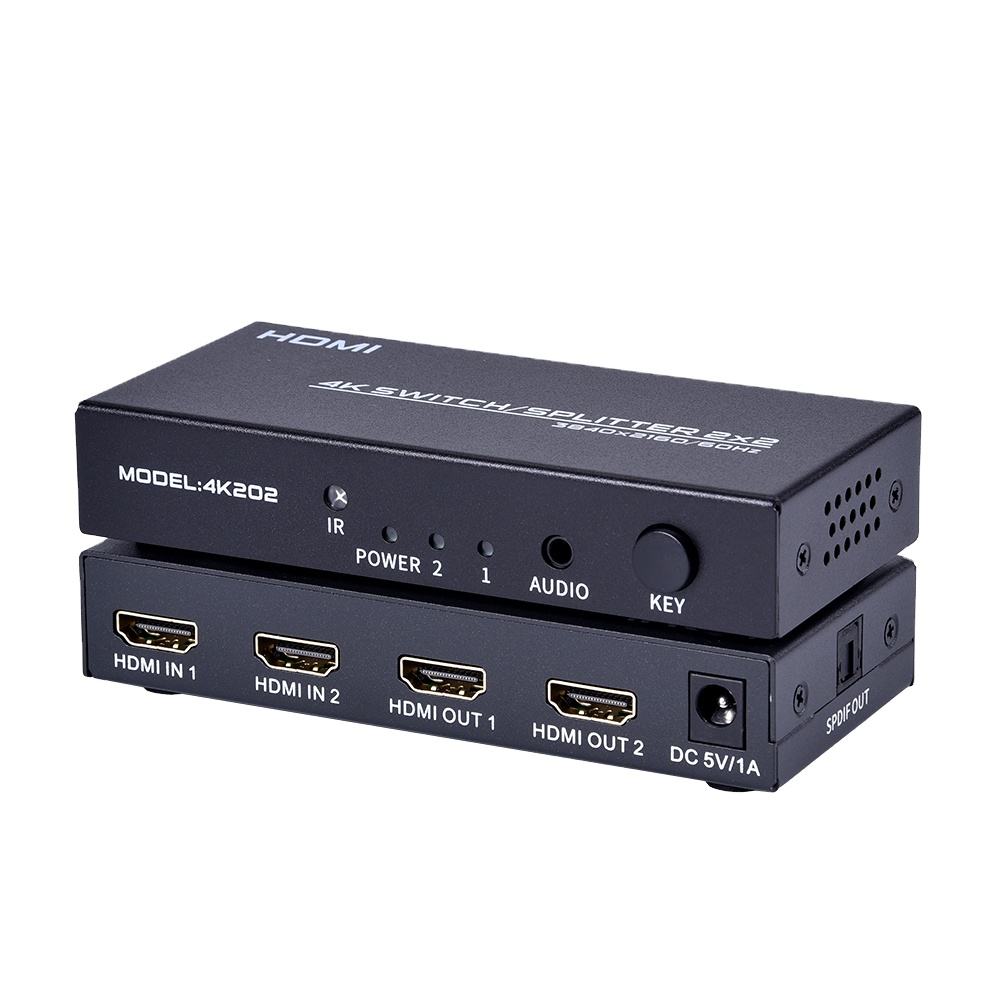

The SP HDMI Matrix 2×2 – 4K is a high-performance HDMI switch and splitter combination that allows 2 HDMI input sources to be routed to 2 HDMI output displays simultaneously in multiple configurations. With support for Ultra HD 4K × 2K resolution, this device ensures crystal-clear video and high-fidelity audio transmission, making it ideal for home theaters, conference rooms, security monitoring, and multimedia setups.
It supports advanced features such as EDID management, audio extraction, IR remote control, and manual switching via front-panel buttons. The matrix design allows each output to independently select any of the two input sources, providing ultimate flexibility.
| Specification | Details |
|---|---|
| Input Ports | 2 × HDMI (Type-A, 19-pin) |
| Output Ports | 2 × HDMI (Type-A, 19-pin) |
| Additional Ports | 1 × Audio Out (3.5mm Stereo), 1 × SPDIF Optical Audio Out, 1 × IR Receiver, 1 × DC 5V/1A Power Input |
| Video Resolution Support | 4K × 2K @ 30Hz, 1080p @ 60Hz, 720p, 480p compatible |
| Audio Formats Supported | LPCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio |
| Switching Control | Front-panel button & IR remote control |
| HDCP Support | Yes, compliant with HDCP 1.4/2.2 |

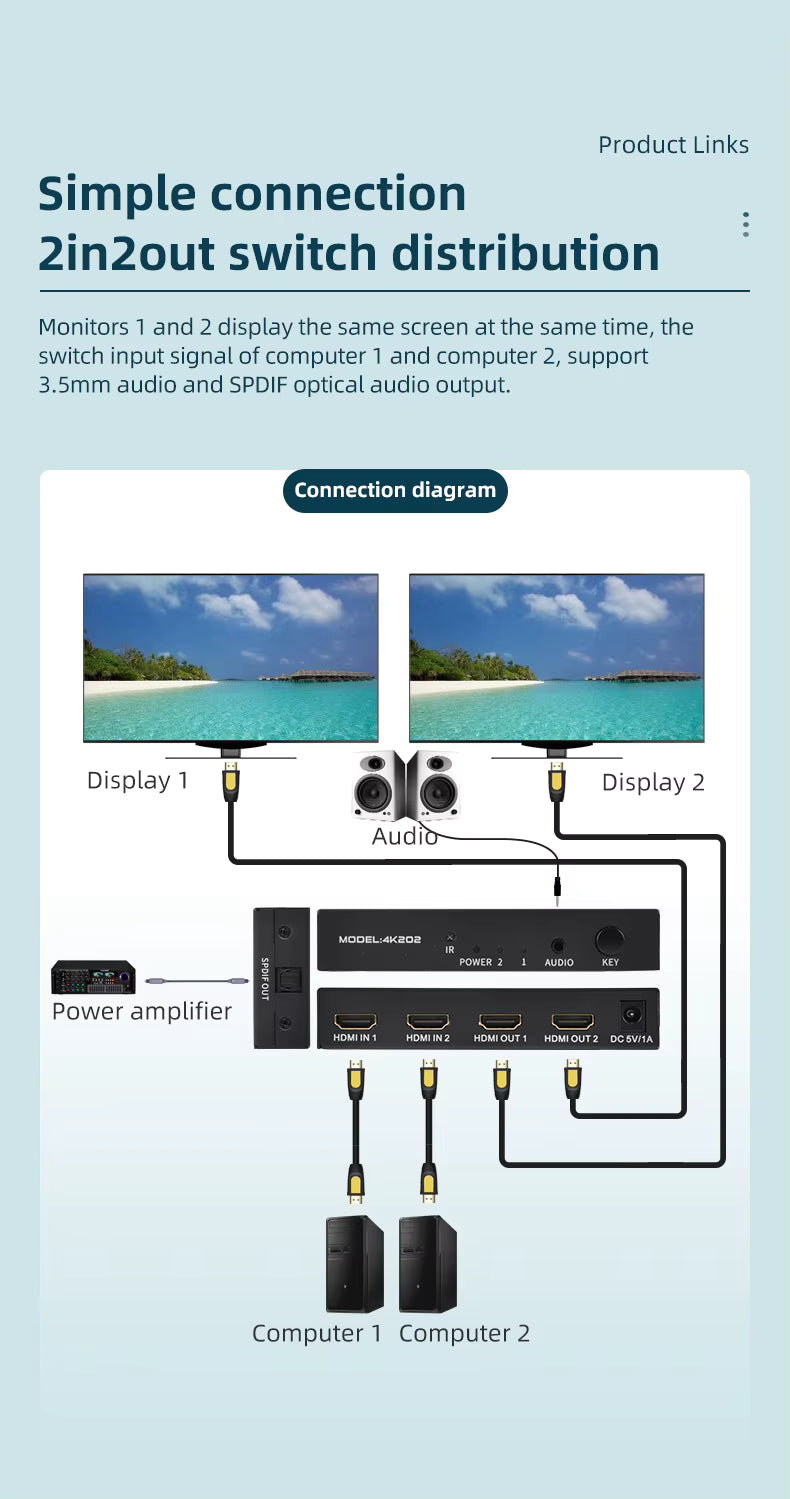

| Matrix Function | Each output independently selects Input 1 or Input 2 |
| Power Supply | DC 5V/1A |
| Material | Metal casing for durability and heat dissipation |
| Dimensions | Compact design, easy installation |
Key Benefits
- High-resolution support: Up to 4K × 2K @ 30Hz for crystal-clear visuals
- Independent matrix function: Each output can select any input for flexible display
- Multiple audio options: Stereo and SPDIF optical output; supports multiple audio formats
- Convenient control: Front-panel buttons and IR remote for easy operation
- Durable design: Metal casing ensures heat dissipation and long-term reliability
- Compact & easy to install: Fits in professional AV setups, home theaters, or control rooms
