Shieldplus

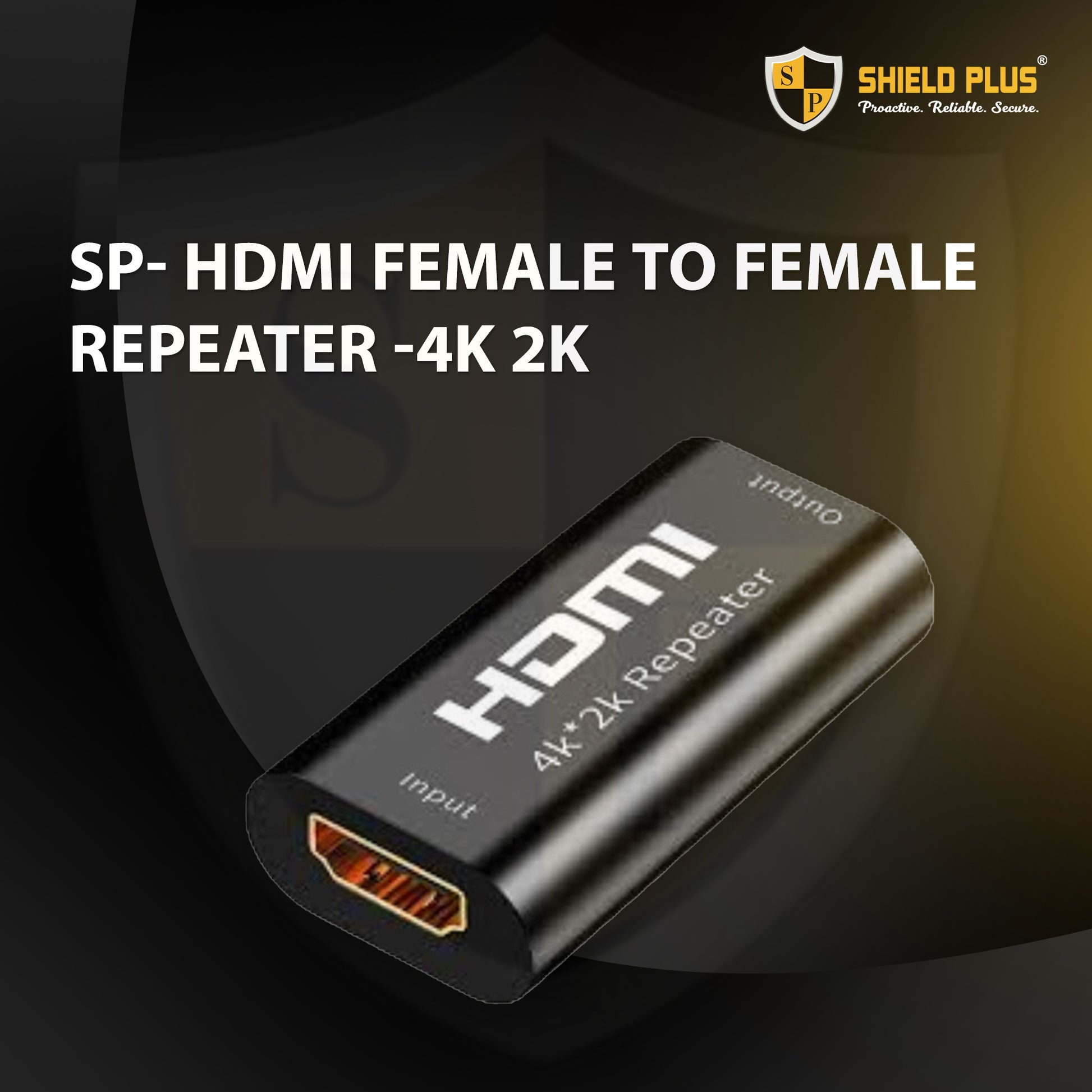

SP- HDMI FEMALE TO FEMALE REPEATER -4K 2K
SP- HDMI FEMALE TO FEMALE REPEATER -4K 2K
Couldn't load pickup availability
4K HDMI Repeater (Female to Female) – HDMI 1.4b | HDCP 1.4 | 60M Transmission
Technical Specifications:
| Feature | Details |
|---|---|
| Product Type | HDMI Repeater (Female to Female) |
| Transmission Distance | 1080P: Up to 60 Meters, 4K: Up to 40 Meters |
| Input Port Range | 1080P: 0–45 Meters, 4K: 0–25 Meters |
| Output Port Range | 1080P: 0–15 Meters, 4K: 0–15 Meters |
| HDMI Version | HDMI 1.4b |
| Supported Resolutions | 3D, 4K@30Hz, Full HD 1080P |
| HDCP Compliance | HDCP 1.4 |
| Operation Frequency | Up to 340 MHz |
| HDMI Data Rate | 1.65Gbps (Single Link) |
| Supported Video Formats | 640x480, 800x600, 1024x768, 1920x1200 |
| Power Requirement | No external power needed (Plug & Play) |
Product Description:

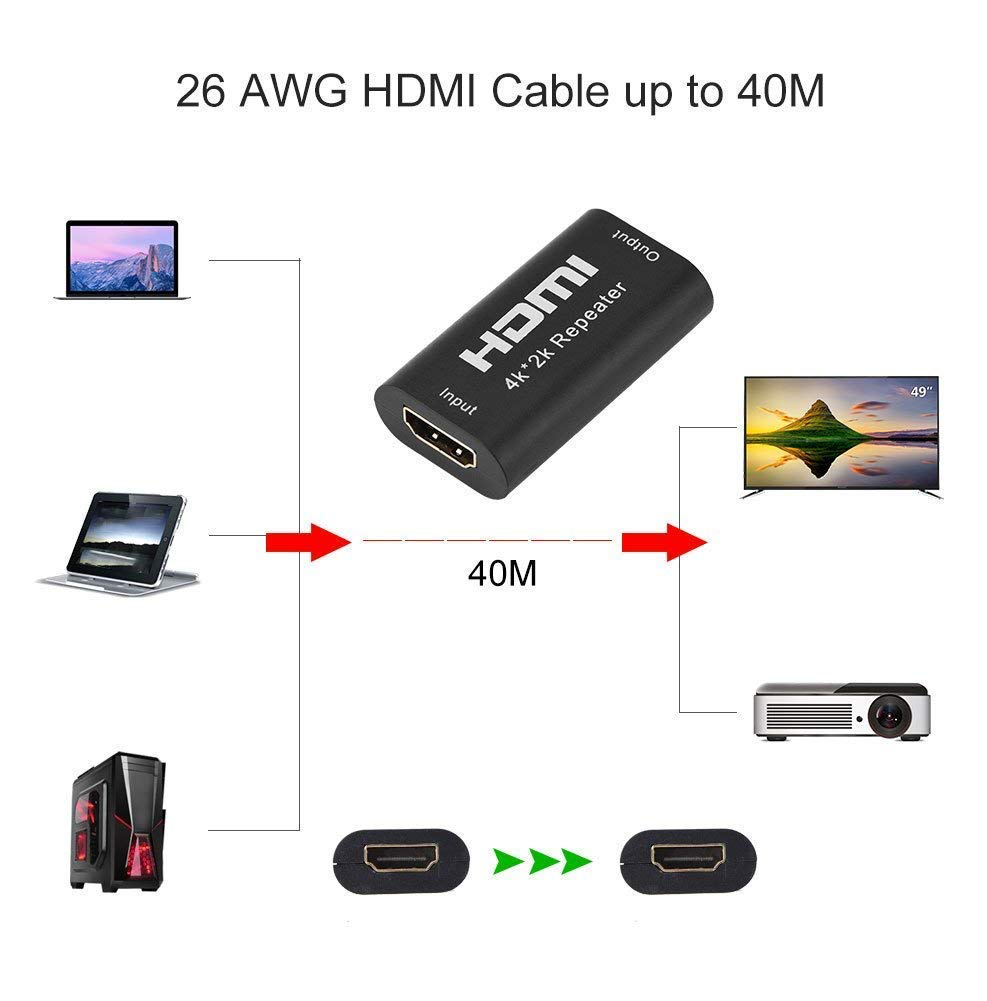

The 4K HDMI Repeater (Female to Female) is designed to extend HDMI signals over long distances without signal loss or degradation. It regenerates and boosts weak HDMI signals, allowing high-quality video and audio transmission up to 60 meters for 1080P and 40 meters for 4K resolution.
Ideal for gaming consoles, Blu-ray players, set-top boxes, projectors, and home theaters, this repeater ensures crystal-clear signal delivery with support for 3D, 4K@30Hz, and Full HD 1080P content. It is HDCP 1.4 compliant to support protected content and features a 1.65Gbps data rate for smooth video playback.
With no installation or configuration required, this plug-and-play HDMI repeater is perfect for quick setups. It requires no external power source, making it a compact and portable solution for both home and professional AV systems.

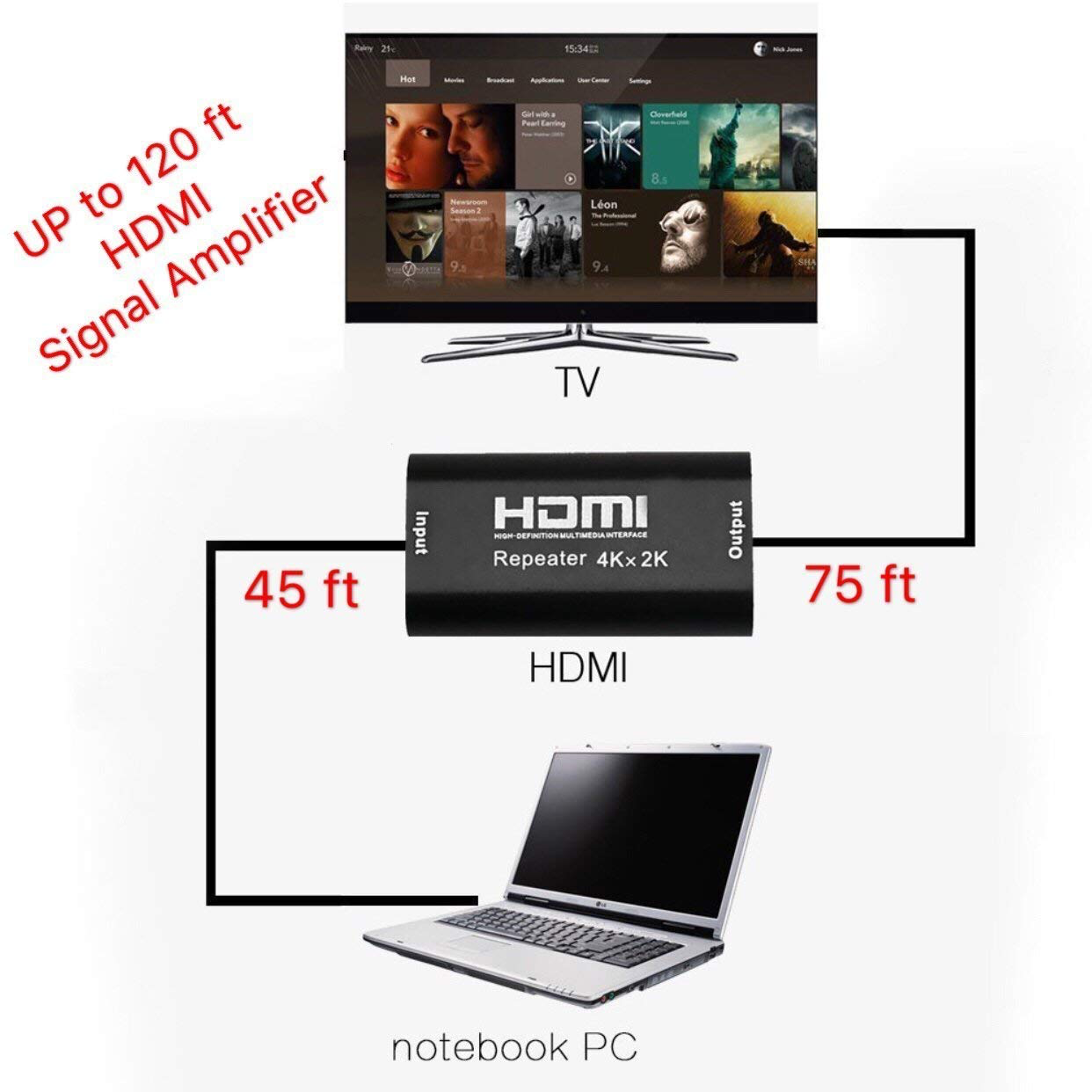

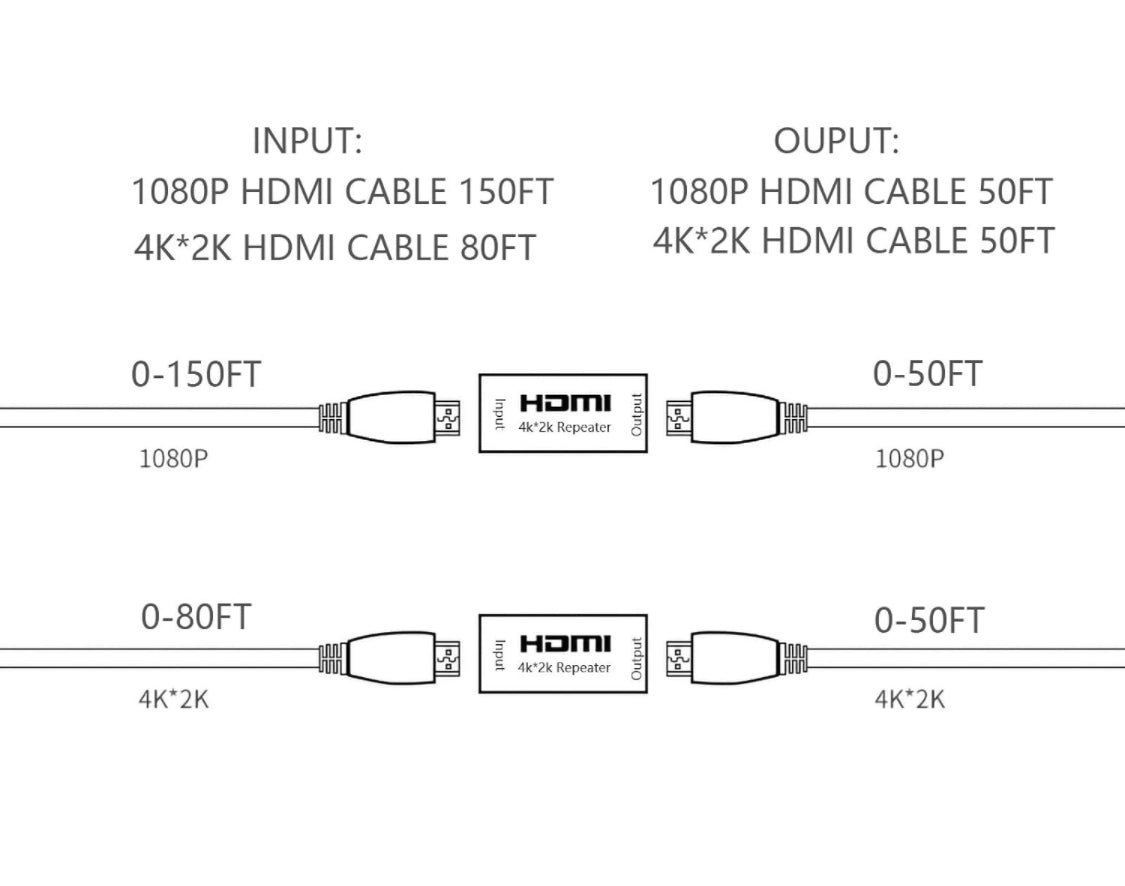

It supports input cable lengths up to 45m for 1080P and 25m for 4K, with output cable lengths of up to 15m for either resolution. Please use high-quality HDMI cables to achieve maximum performance and resolution.
Whether you're extending an HDMI signal across a large room or through a complex AV setup, this HDMI repeater provides the performance, flexibility, and reliability needed for modern multimedia connections.
