SP- 8*1 HDMI QUAD MULTIVIEWER- 4K

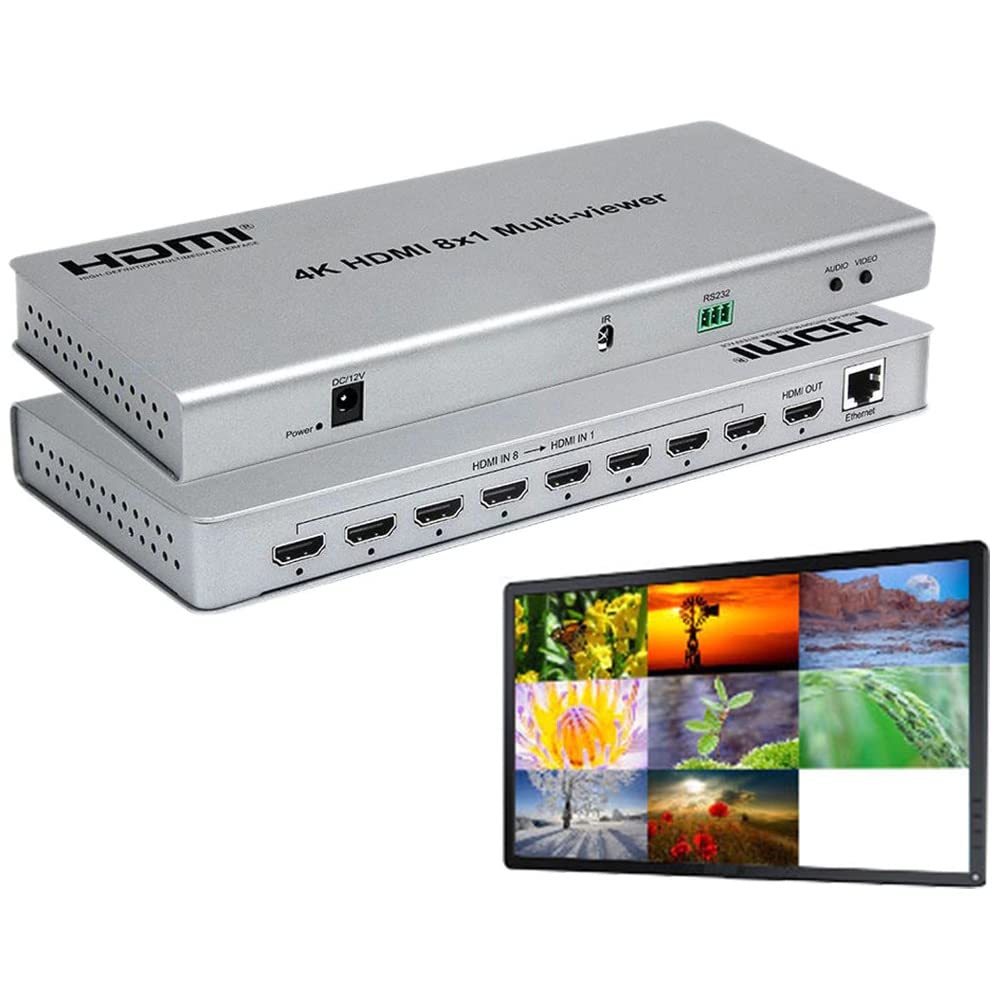

SHIELD PLUS 4K HDMI 8x1 Quad Multi-viewer is a high-performance with eight HD screen segmentation and seamless switching output switch. It can display 8 HD digital video signals on the same screen, and has a variety of video segmentation, seamless switching of 8 HD input signals synchronously. The control methods of the switch are flexible; it can be switched via button and IR control. It's a very practical and stable switch and easy to install, and can be used in major projects, meeting halls, and other places.

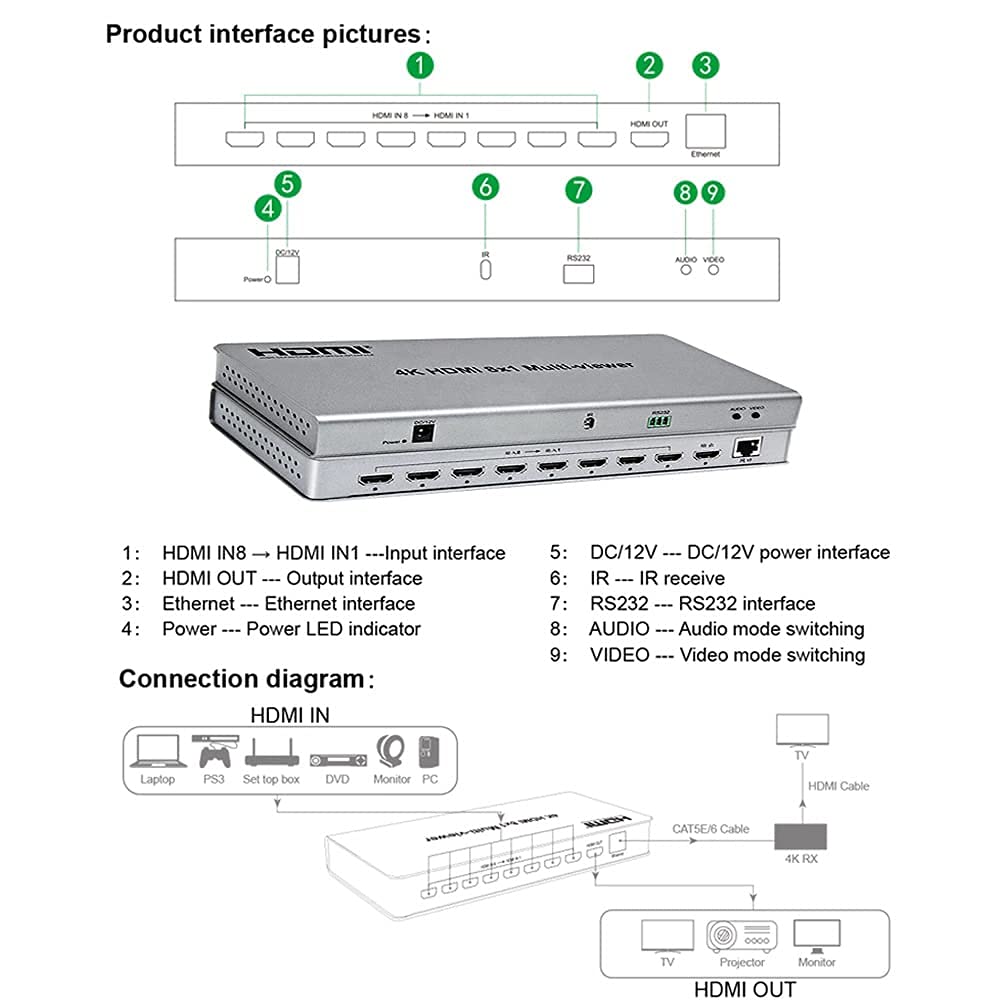

| Specification | Details |
|---|---|

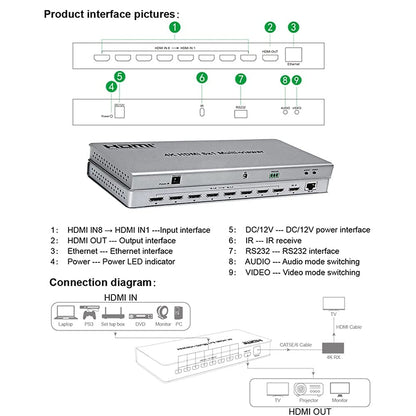

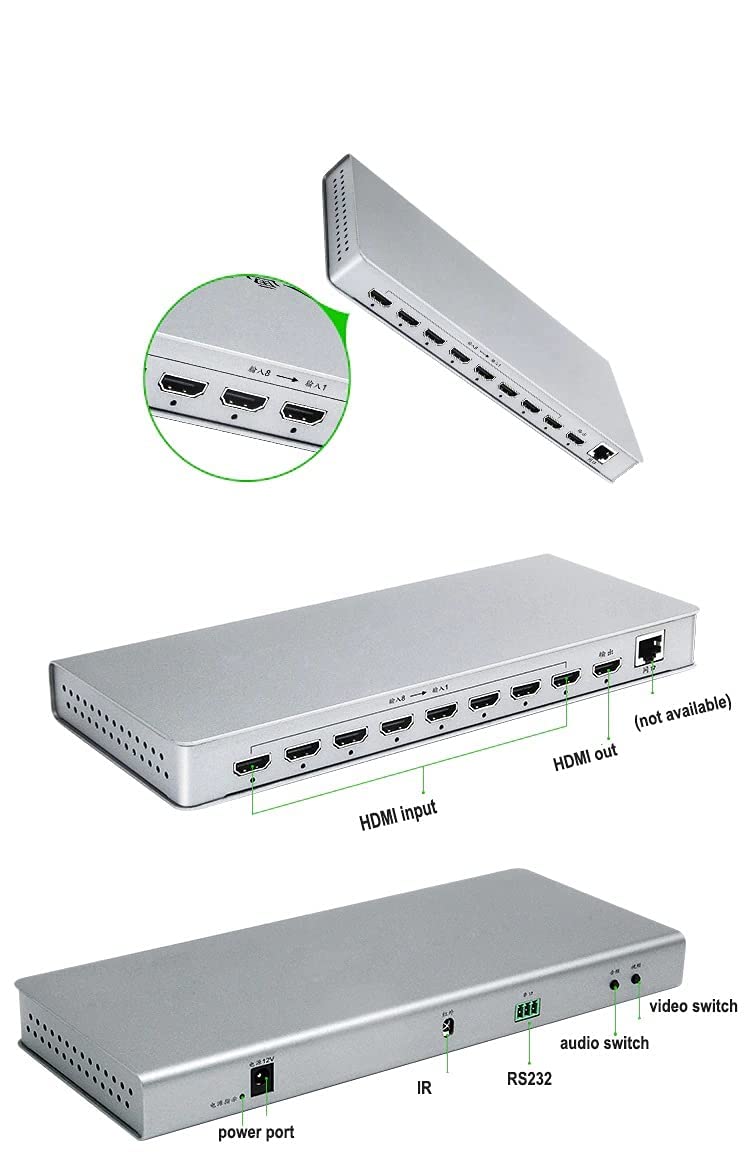

| Inputs | 8 × HDMI |
| Output | 1 × HDMI |

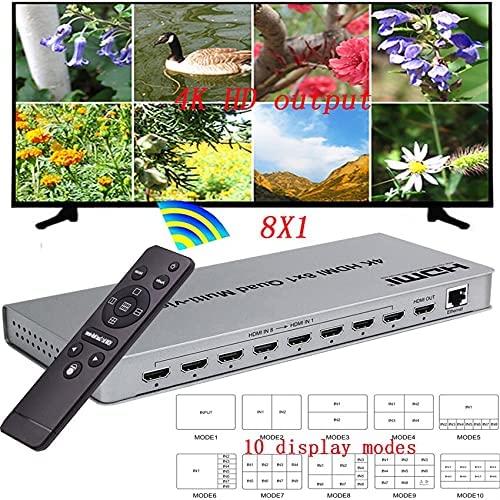

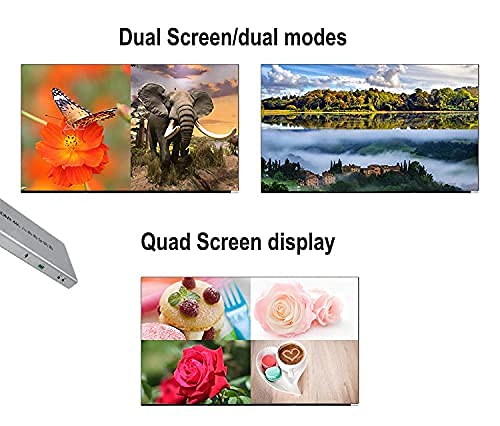

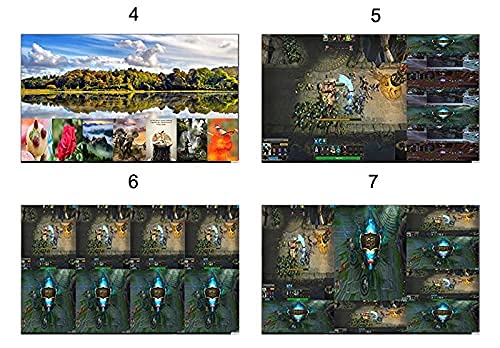

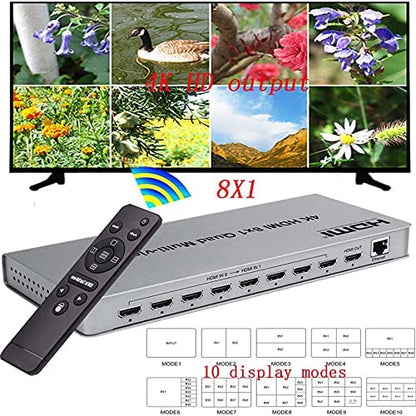

| Screen Segmentation | Supports 8 HDMI signal split screens |
| Seamless Switching | Supports 8 HDMI signal seamless switching |

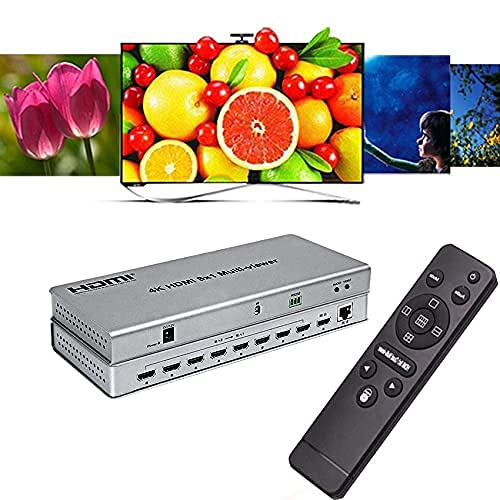

| Control Options | IR remote control |
| Compatibility | HDMI 1.4, HDCP 1.4, DVI 1.0 |
| Input Resolution Support | 1080P, 720P, 1080i, 1024×768, 1360×768, etc. |
| Output Resolution Support | 1080P@60Hz, 2560×1600@60Hz, 2560×1440@60Hz, 3840×2160@30Hz |
| Audio/Video | Supports audio and video superposition |
| Transmission Distance | Up to 15 m via high-speed HDMI cable |
| Power Supply | DC 12V/2A |
| Net Weight | 792 g |
| Dimensions (L×W×H) | 252 × 105 × 25 mm |
Key Benefits
- Multiple HDMI inputs: Supports up to 8 sources for versatile setups

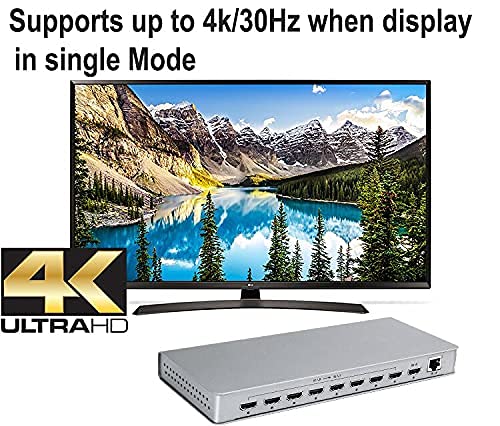

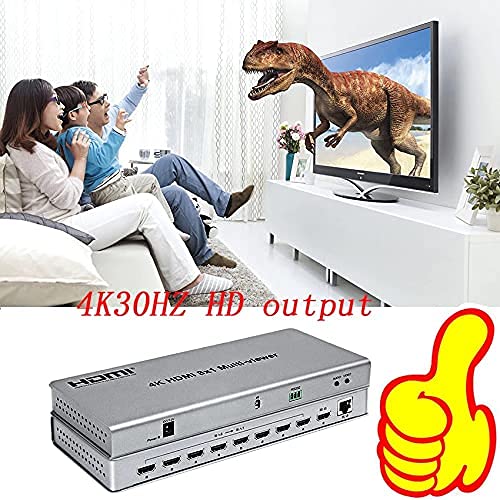

- High-resolution output: Up to 4K@30Hz and 1080P@60Hz
- Seamless switching: Smooth, real-time transition between sources
- Flexible control: IR remote control for convenient operation
- Audio-video overlay: Combines video and audio for enhanced display
- Long-distance transmission: Up to 15 m with high-speed HDMI cables
- Compact and lightweight: Durable metal design, easy to install
