SP- 4*1 HDMI KVM QUAD MULTIVIEWER-4K
SP- 4*1 HDMI KVM QUAD MULTIVIEWER-4K
Regular price
Rs. 5,723.00
Regular price
Sale price
Rs. 5,723.00
Unit price
per
Taxes included.
Couldn't load pickup availability

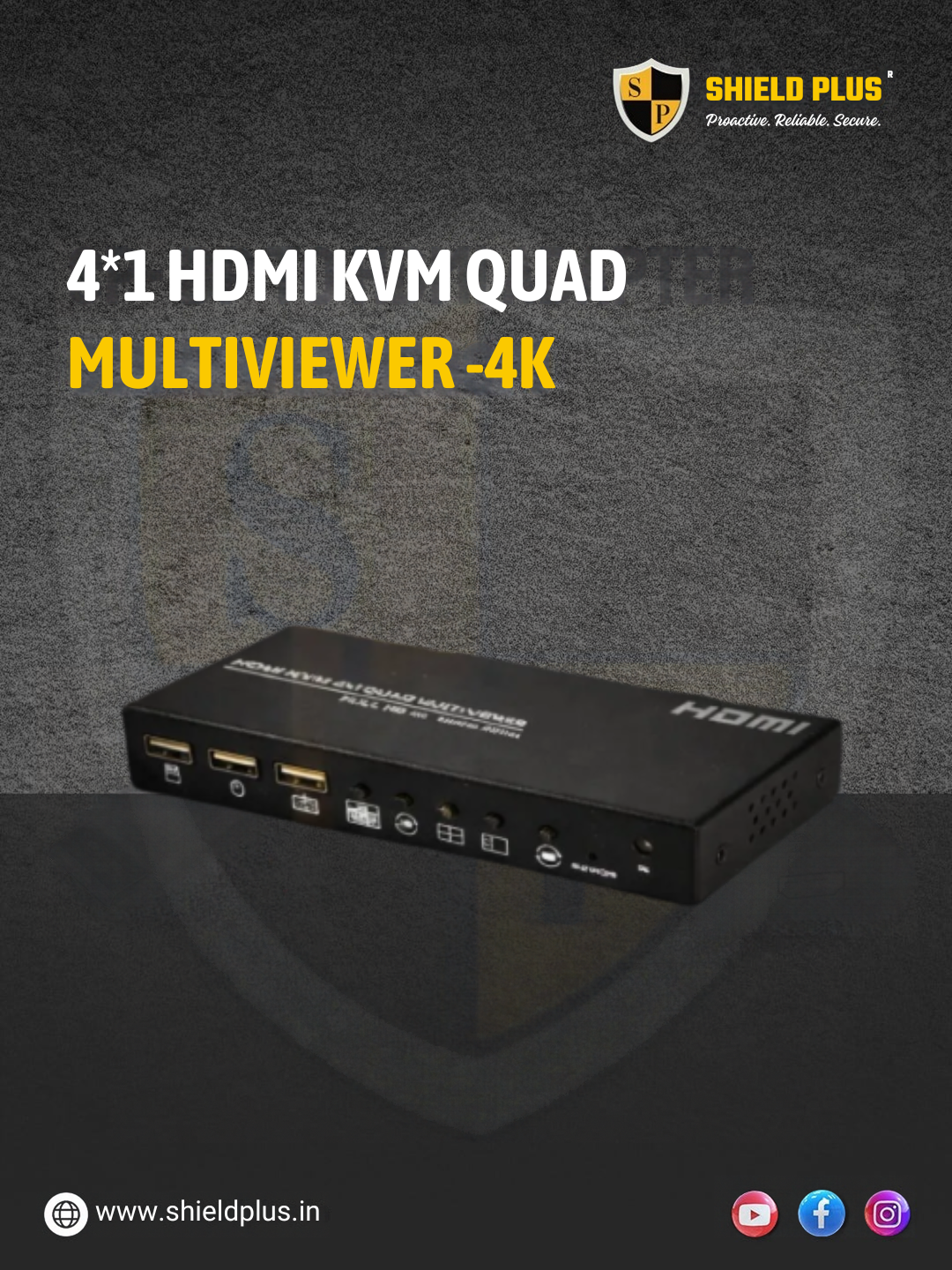

SP- 4*1 HDMI KVM QUAD MULTIVIEWER-4K @ 30Hz

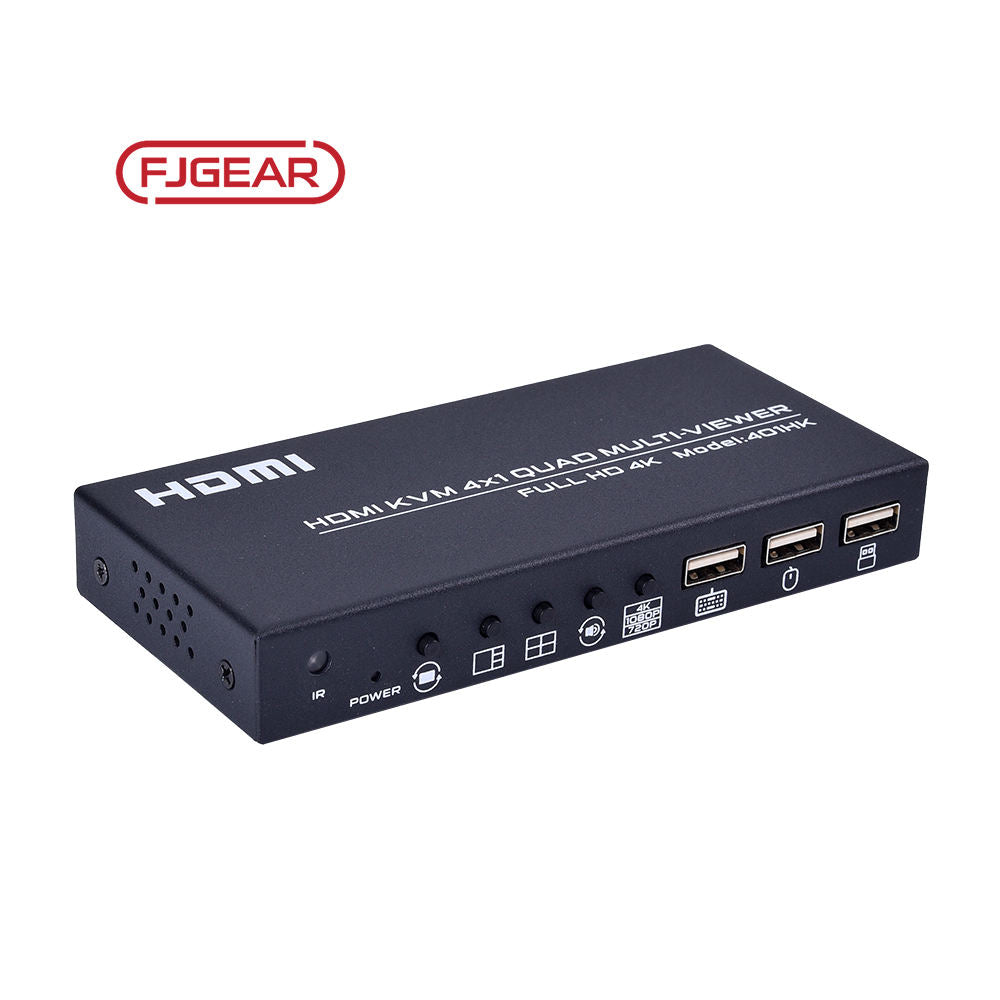

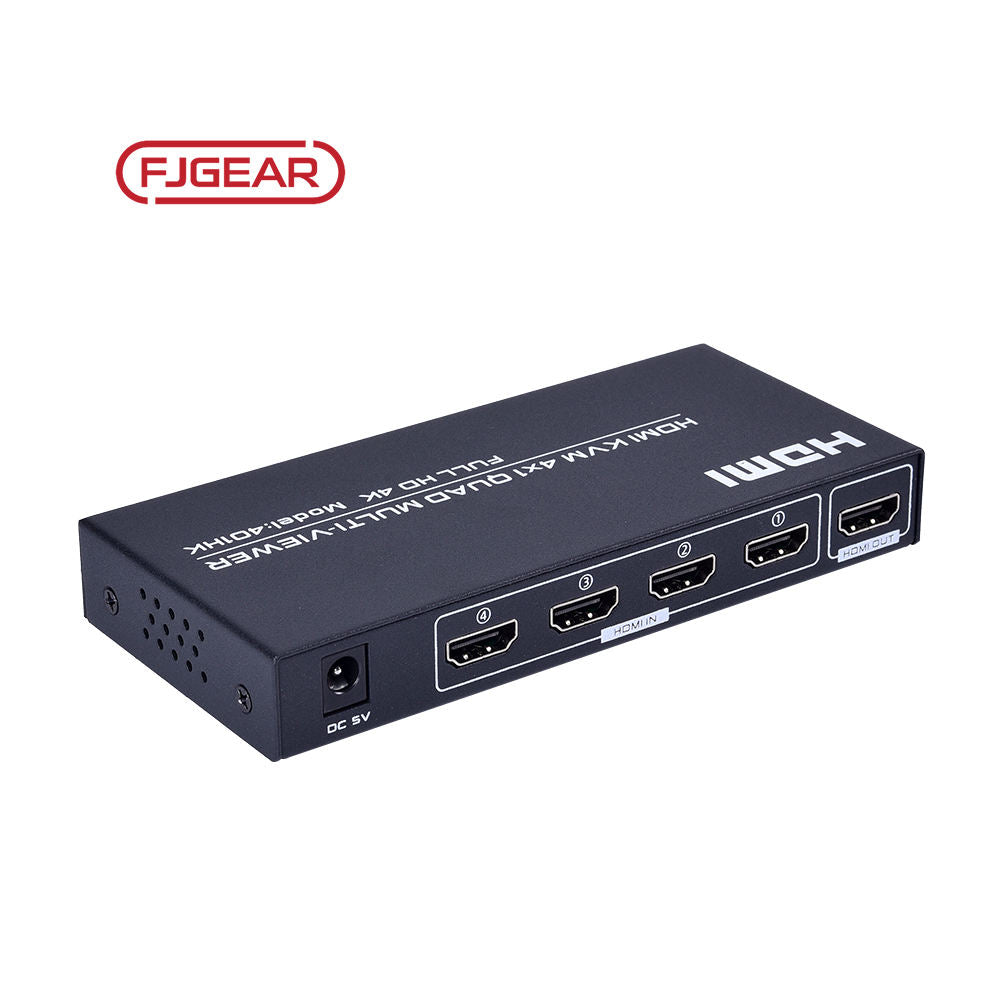

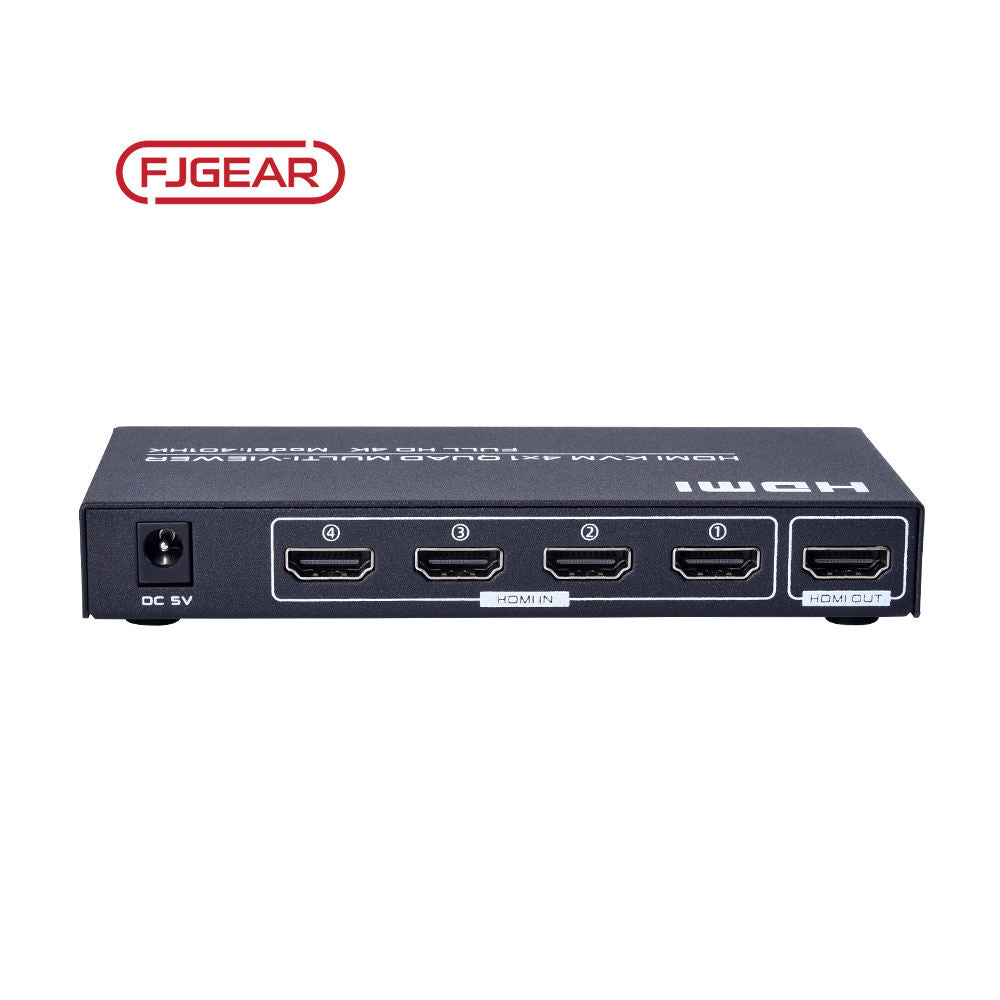

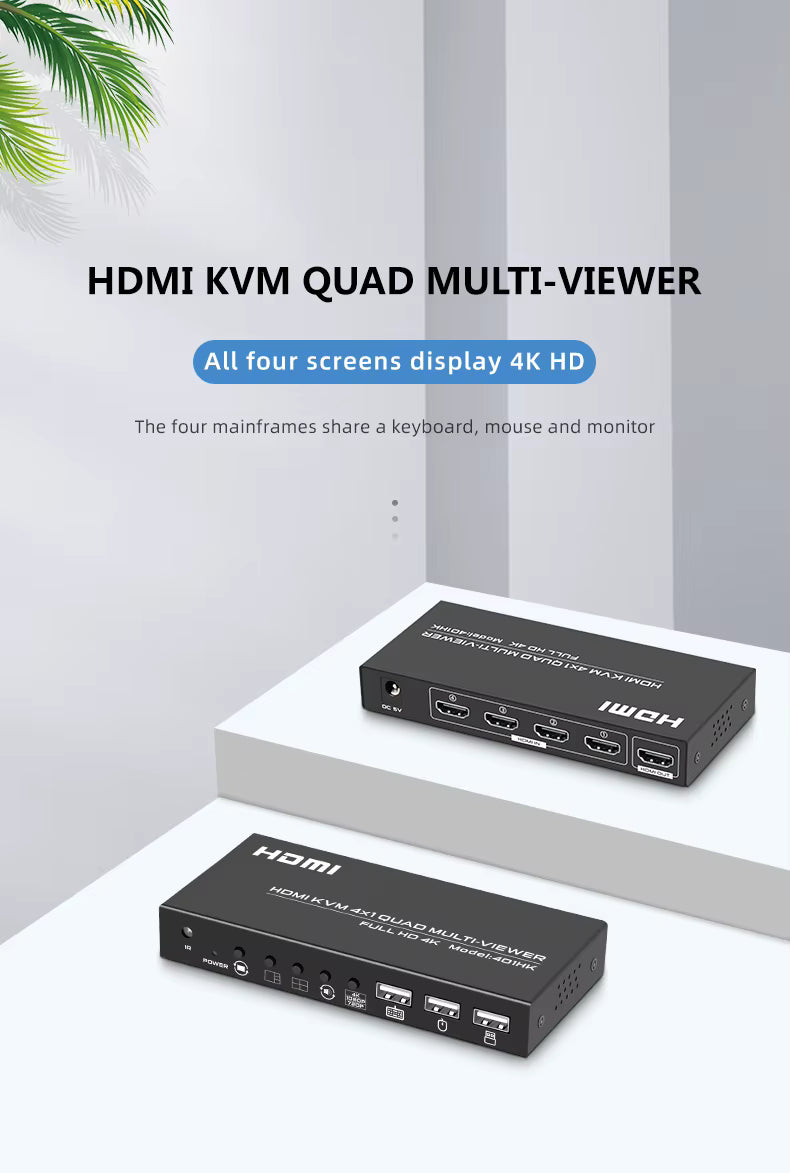

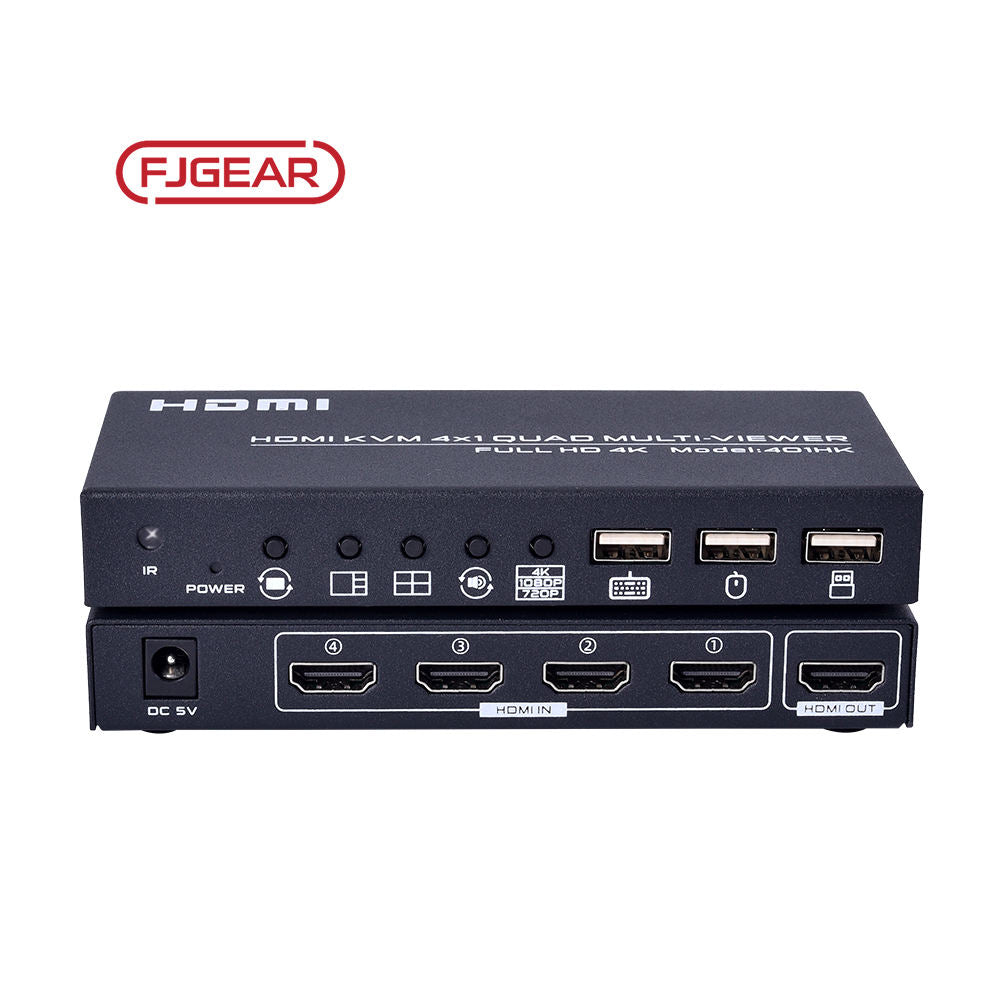

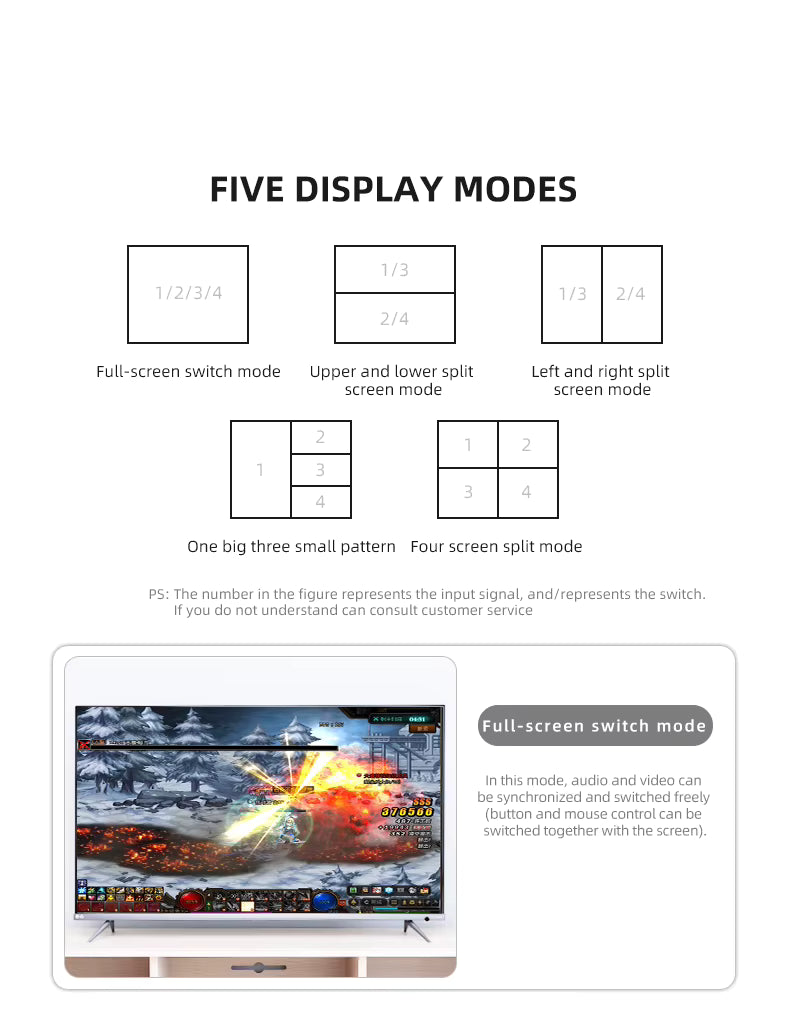

The SP 4×1 HDMI KVM Quad Multiviewer – 4K is a multifunctional device that combines an HDMI multiviewer with KVM (Keyboard, Video, Mouse) switch functionality. It allows users to connect up to 4 HDMI input sources (such as PCs, DVRs, NVRs, or media players) and display them on a single monitor in quad, dual, or full-screen modes with stunning Ultra HD 4K resolution.

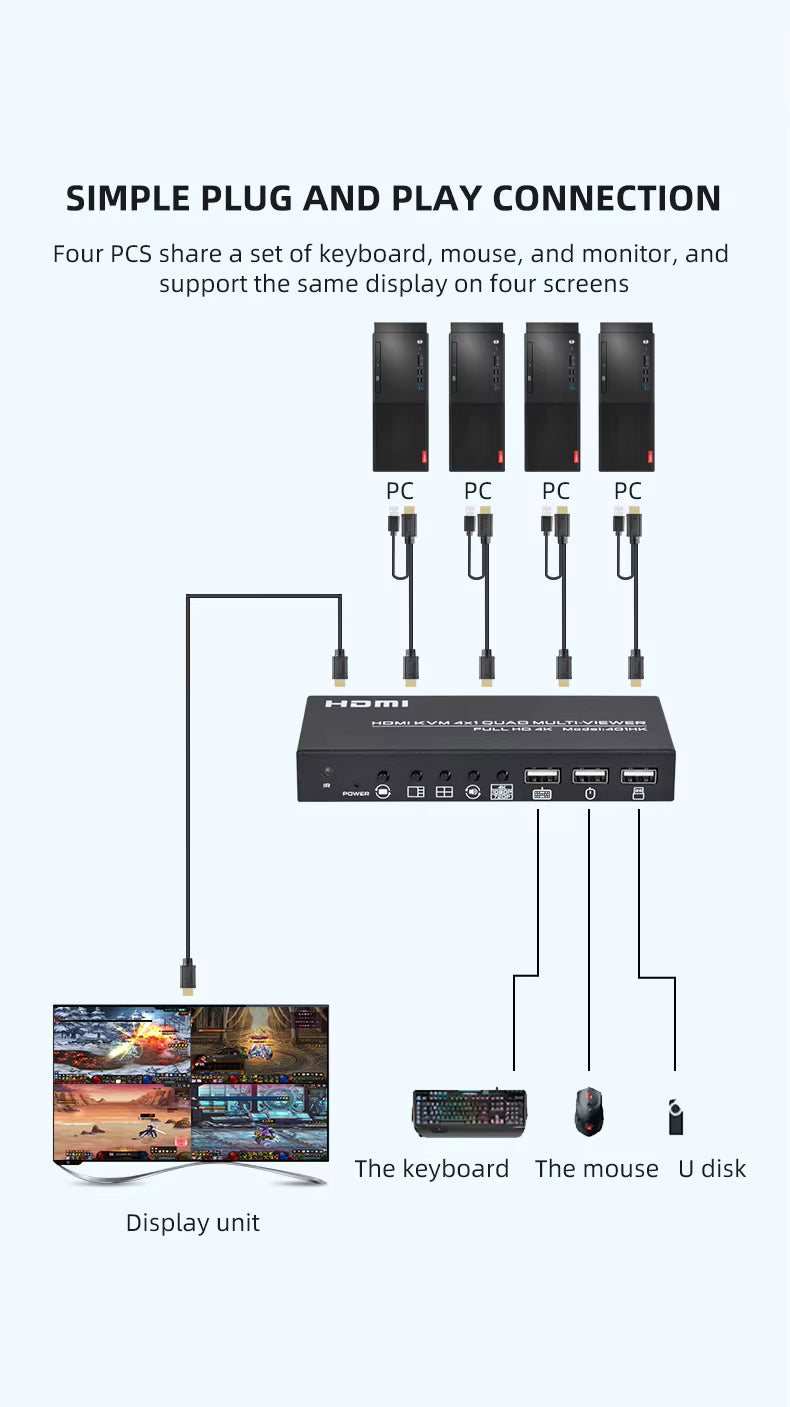

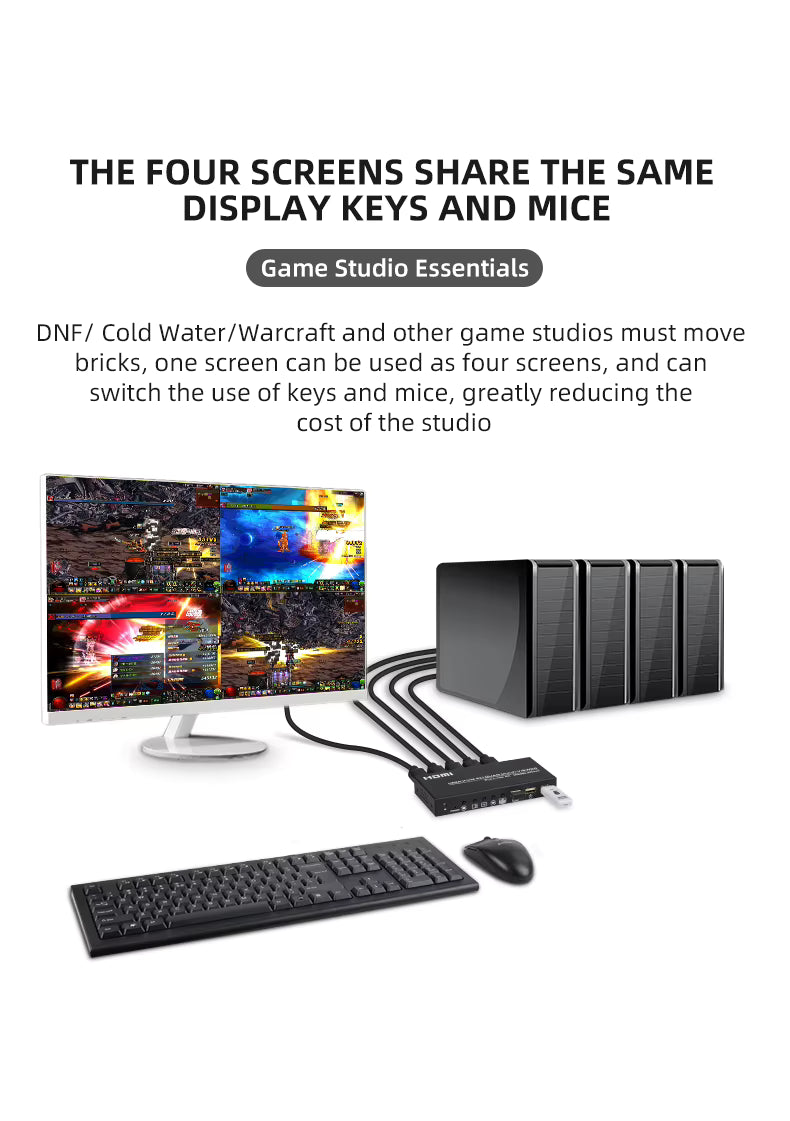

With built-in KVM switching, users can control up to 4 computers using a single keyboard and mouse, making it an ideal solution for command centers, surveillance monitoring, data management, and multimedia presentations. The unit supports seamless switching, IR remote control, and front-panel operation for maximum flexibility.
| Specification | Details |
|---|---|
| Shell Material | Iron shell |
| HDMI Resolution | 3840 × 2160 @ 30Hz |
| Multi-Screen Display | Simultaneously displays 4 host screens; keyboard and mouse synchronized control |
| Audio-Video Transmission | Synchronized transmission; multiple screens can select audio output |
| Heat Dissipation | Dual heat sink design with air convection, suitable for long-term use |
| Chip Performance | Stable chip transmission, higher clarity, strong compatibility, stable switching |
| Supported Resolutions | 4K / 1080P / 720P; four-split mode allows each screen to reach 1080P |
| Size | 13.2 × 6.7 × 2.1 cm |
| Weight | ~600 g |
Key Benefits
- Supports up to 4K UHD; each split-screen up to 1080P
- View and control 4 screens with one keyboard and mouse
- Synchronized audio-video with selectable output
- Efficient heat dissipation for stable long-term use
- Compact, lightweight, and highly compatible
