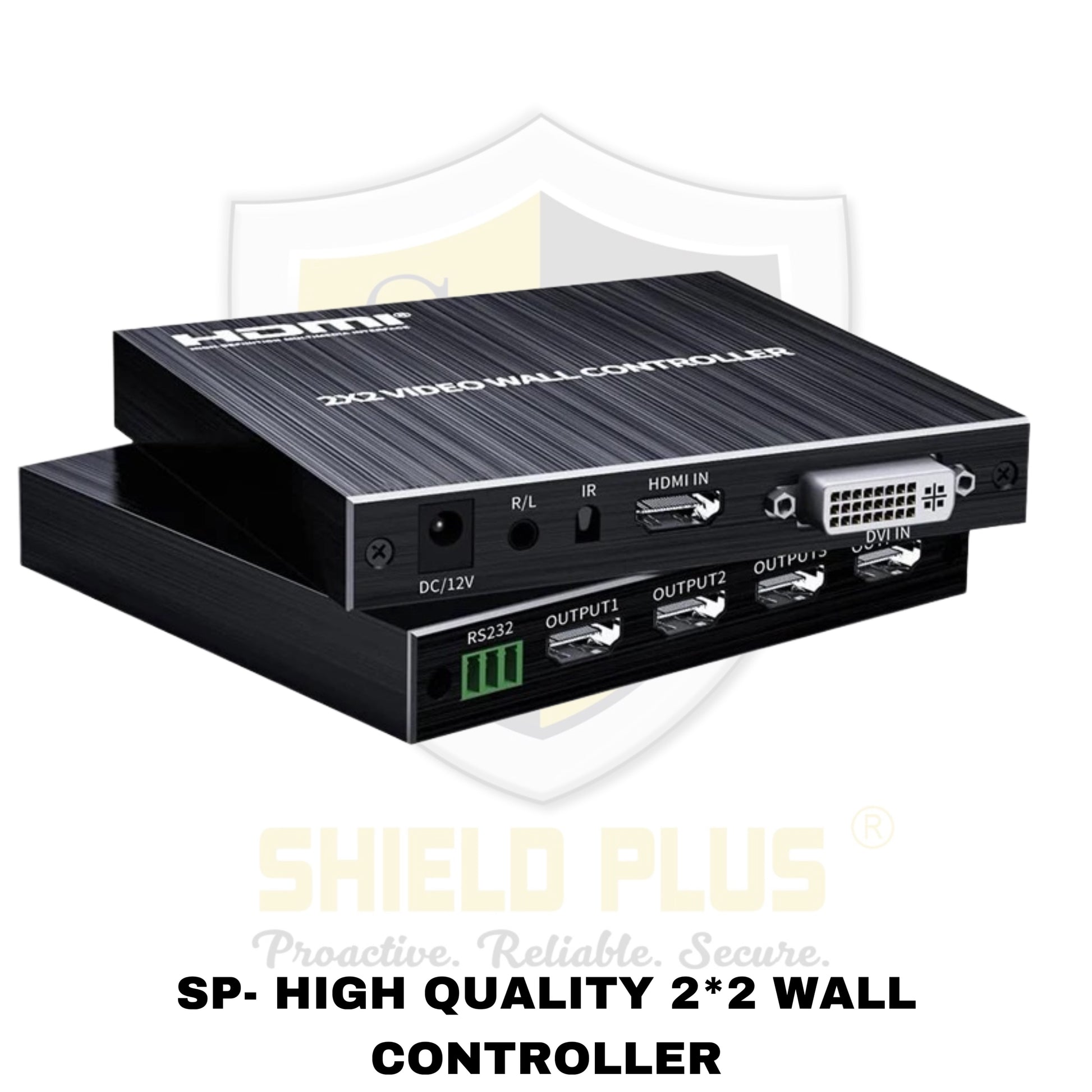

SP- 2*2 HDMI VIDEO WALL CONTROLLER (1080P)
SP- 2*2 HDMI VIDEO WALL CONTROLLER (1080P)
Regular price
Rs. 6,490.00
Regular price
Sale price
Rs. 6,490.00
Unit price
per
Taxes included.
Couldn't load pickup availability

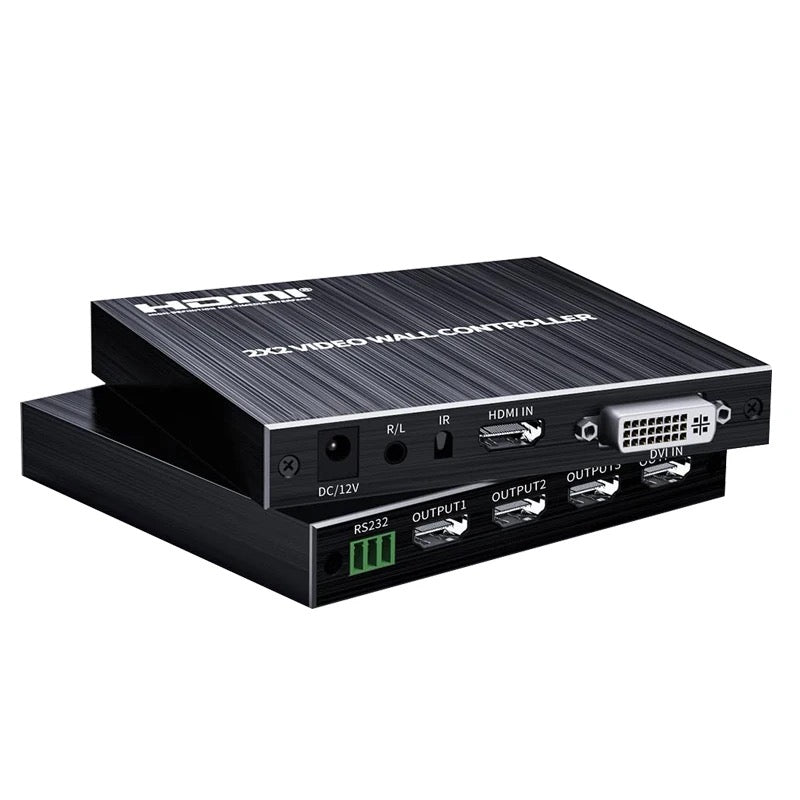

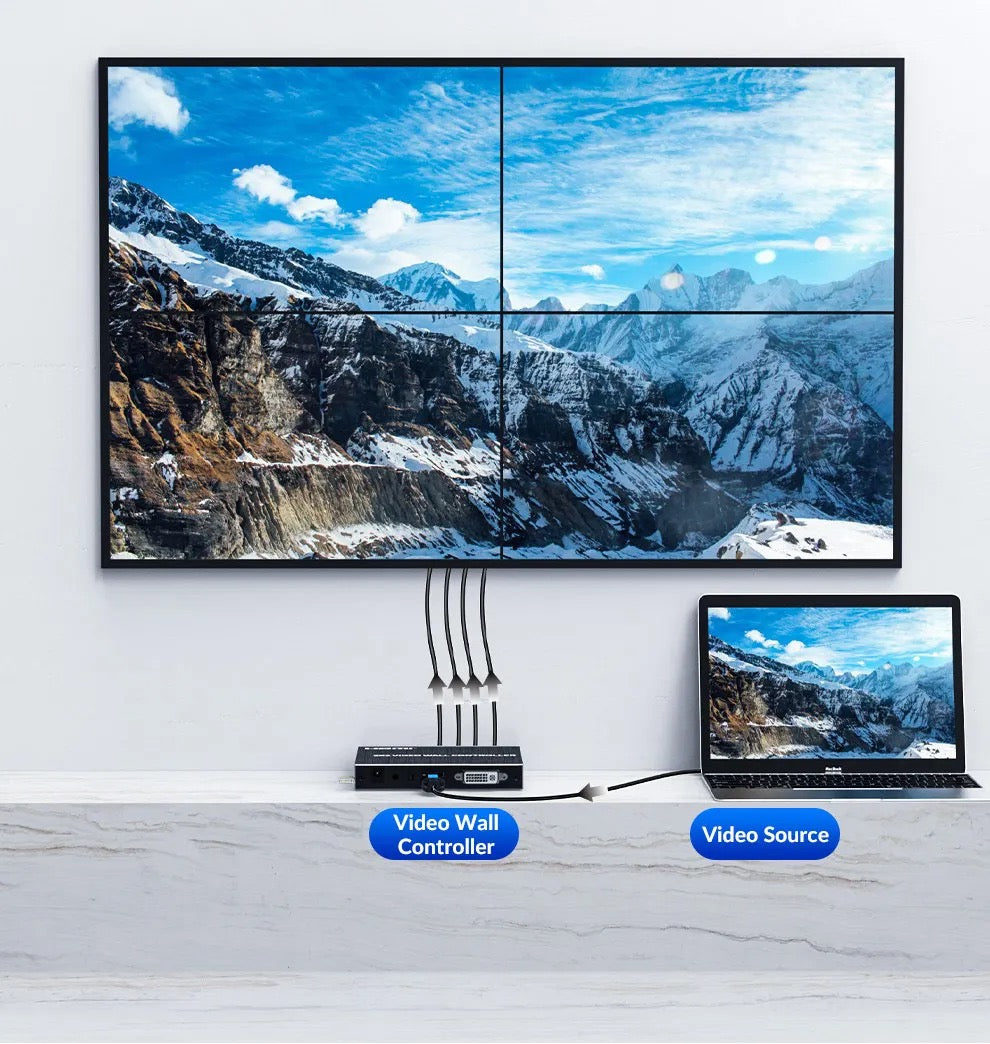

The SP 2×2 HDMI Video Wall Controller (1080p) is a compact video processor designed to input a high-resolution HDMI or DVI signal and split it across up to two-by-two screens (4 displays), forming a unified video wall. It supports a range of splicing modes—most commonly 2×2, 1×4, 4×1, 1×3, 3×1, and 2×1. Ideal for digital signage, exhibition setups, boardroom displays, or retail window visuals.
Key Features:
- Supports HDMI/DVI input up to 1080p @ 60Hz
- Outputs to 4 HDMI displays at 1920×1080 @ 60Hz

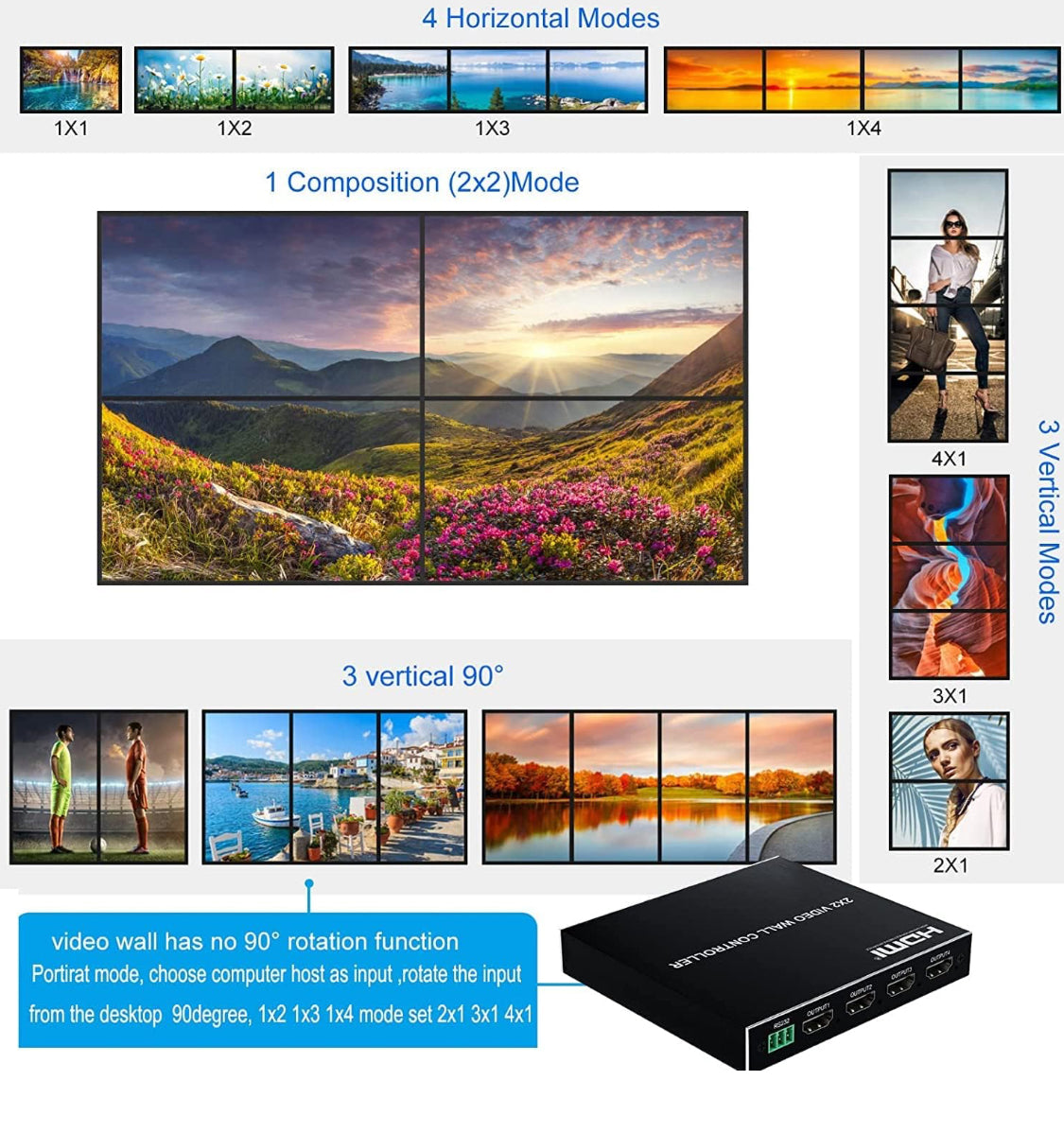

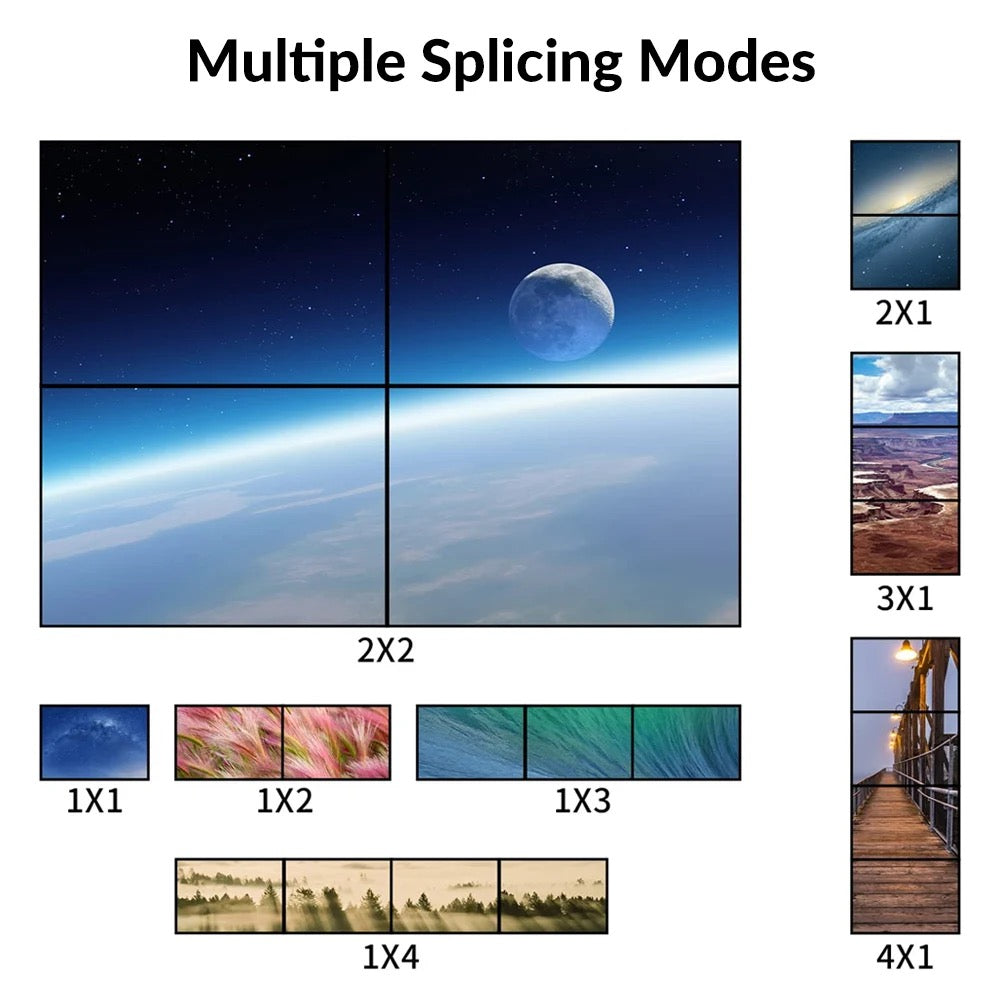

- Multiple video wall modes: 2×2, 1×4, 4×1, 1×3, 3×1, 1×2, 2×1, splitter
- 180° screen rotation supported
- Bezel compensation for precise display alignment
- 3.5 mm stereo and optical SPDIF audio output

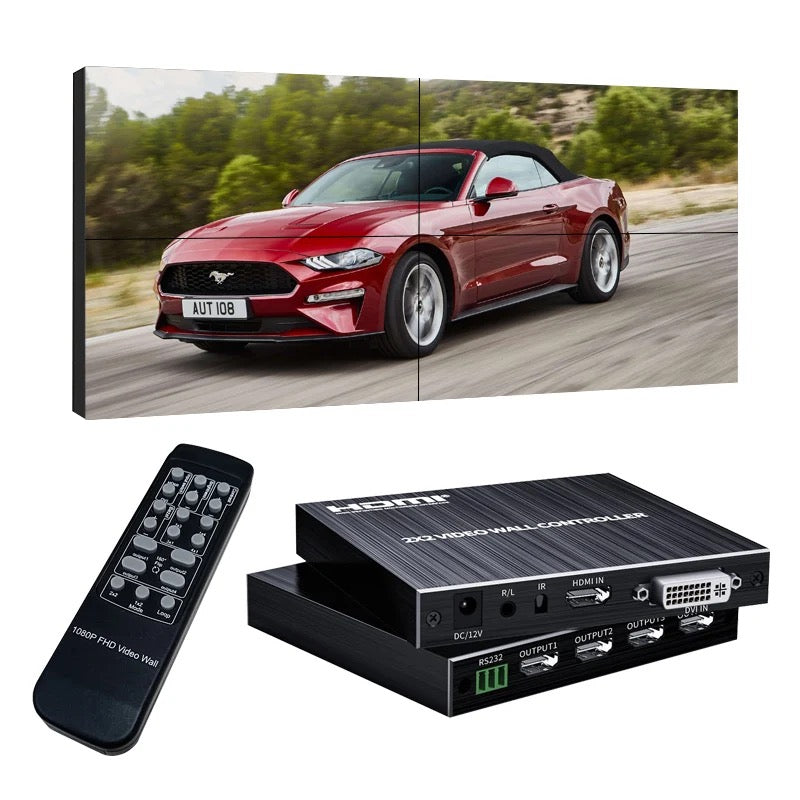

- Easy control via buttons, IR remote, or RS-232
- Durable black metal housing for effective heat dissipation
- Plug-and-play operation, no complex setup required
Technical Specifications:
| Input | 1 x HDMI / DVI (via HDMI adapter) |
| Max Input Resolution | Up to 1080p @ 60Hz |
| Output | 4 x HDMI @ 1920×1080 @ 60Hz |
| Video Wall Modes | 2×2, 1×4, 4×1, 1×3, 3×1, 1×2, 2×1, splitter |
| Rotation | 180° rotation supported |
| Bezel Compensation | Yes |
| Audio Output | 3.5 mm stereo + optical SPDIF |
| Control Methods | Buttons, IR remote, RS-232 |
| Housing Material | Black metal |
| Power Supply | ~5 V/2 A or 12 V adapter |
| Dimensions | Approximately 130 × 130 × 25 mm |
| Weight | Approximately 400 g |
| Operating Temperature | 0–40 °C |
| Certifications | CE, FCC, RoHS, HDCP 1.3/1.4 |
